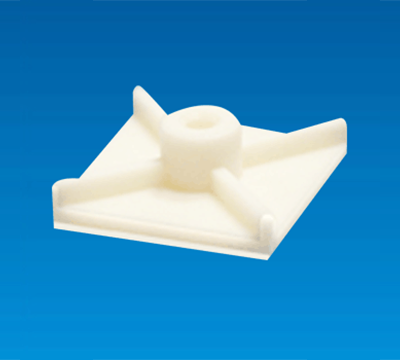

SPACER SUPPORT MSS-6A

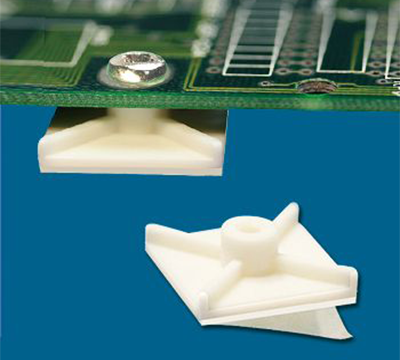

- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Adhesive back design, no need for a mounting hole on the chassis.
- Use with Tapping screw to increase the power of holding PCB.
- Adhesive tape can be changed upon request.
SPACER SUPPORT MSS-6A
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Adhesive back design, no need for a mounting hole on the chassis.
- Use with Tapping screw to increase the power of holding PCB.
- Adhesive tape can be changed upon request.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- ADHESIVE TAPE: 3M
- SCREW: M3 TAPPING SCREW

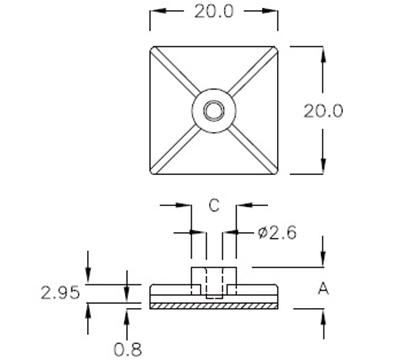

| PART NO | A | C | PACKAGE |
|---|---|---|---|
| MSS-6A | 6.35 | Ø7.0 | 500 |
