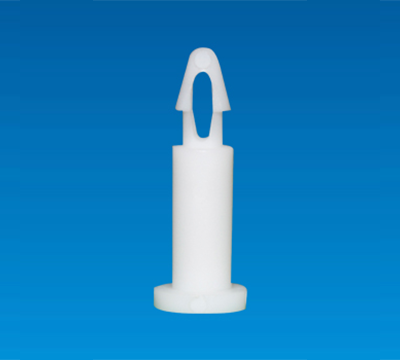

SPACER SUPPORT PCE-1A

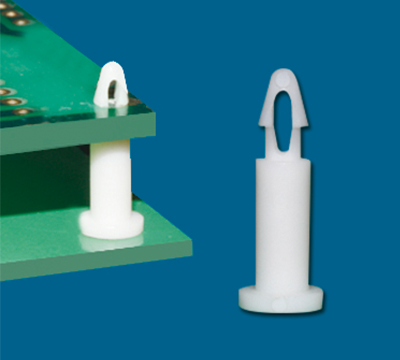

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
SPACER SUPPORT PCE-1A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

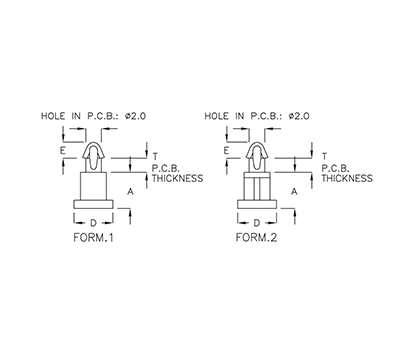

| PART NO | A | D | T P.C.B THICKNESS |
E | FORM | PACKAGE |
|---|---|---|---|---|---|---|
| PCE-1A | 1.5 | Ø4.8 | 1.4~1.6 | 2.0 | 1 | 2000 |
| PCE-1C | 1.8 | Ø4.2 | 1.4~1.6 | 2.0 | 1 | |
| PCE-02 | 2.0 | Ø4.2 | 1.4~1.6 | 2.3 | 1 | |
| PCE-2A | 2.5 | Ø4.8 | 1.4~1.6 | 2.0 | 1 | |
| PCE-2C | 2.0 | Ø4.8 | 1.8~2.0 | 2.0 | 1 | |
| PCE-2D | 2.9 | Ø4.2 | 1.4~1.6 | 2.3 | 1 | |
| PCE-2F | 2.0 | Ø4.2 | 0.8~1.0 | 2.0 | 1 | |
| PCE-2H | 2.2 | Ø4.2 | 1.0~1.2 | 2.0 | 1 | |
| PCE-2K | 1.8 | Ø4.2 | 1.0~1.2 | 2.0 | 1 | |
| PCE-2XC | 2.2 | Ø4.2 | 1.4~1.6 | 2.0 | 1 | |
| PCE-03 | 3.0 | Ø4.2 | 1.4~1.6 | 2.0 | 1 | |
| PCE-3A | 2.6 | Ø4.1 | 1.4~1.6 | 2.0 | 1 | |
| PCE-3DF | 3.2 | Ø4.8 | 1.4~1.6 | 2.1 | 1 | |
| PCE-3K | 3.5 | Ø4.8 | 1.4~1.6 | 2.0 | 1 | |
| PCE-3PW | 3.9 | Ø6.0 | 1.4~1.6 | 2.0 | 1 | |
| PCE-3RY | 3.8 | Ø4.8 | 1.4~1.6 | 2.0 | 1 | |
| PCE-4A | 4.0 | Ø4.8 | 1.4~1.6 | 2.1 | 1 | |
| PCE-4F | 4.7 | Ø4.8 | 1.4~1.6 | 2.0 | 1 | |
| PCE-4M | 4.5 | Ø4.8 | 1.4~1.6 | 2.0 | 1 | |
| PCE-05 | 5.0 | Ø4.8 | 1.4~1.6 | 2.0 | 1 | |
| PCE-5JD | 5.0 | Ø4.8 | 1.0~1.2 | 2.0 | 1 | |
| PCE-5QR | 5.0 | Ø6.0 | 1.4~1.6 | 2.0 | 2 | |
| RCE-5TS | 5.3 | Ø4.8 | 0.8~1.0 | 2.3 | 1 | |
| PCE-5K | 5.6 | Ø4.8 | 1.4~1.6 | 2.0 | 1 | |
| PCE-06 | 6.0 | Ø4.8 | 1.4~1.6 | 2.1 | 1 | |
| PCE-6A | 6.5 | Ø4.8 | 1.4~1.6 | 2.2 | 1 | |
| PCE-6C | 6.5 | Ø4.8 | 1.4~1.6 | 2.0 | 1 | |
| PCE-6NS | 6.5 | Ø6.0 | 1.4~1.6 | 2.0 | 2 | |
| PCE-07 | 7.0 | Ø4.2 | 1.4~1.6 | 2.0 | 1 | |
| PCE-08 | 8.0 | Ø4.8 | 1.4~1.6 | 3.0 | 1 | |
| PCE-09 | 9.0 | Ø5.0 | 1.4~1.6 | 2.0 | 1 |
