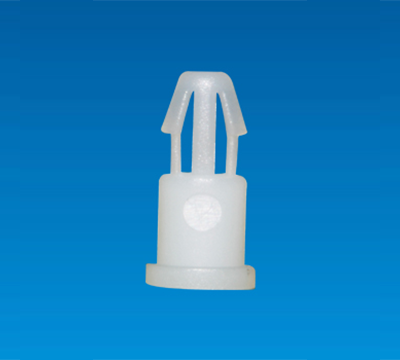

SPACER SUPPORT PCF-2A

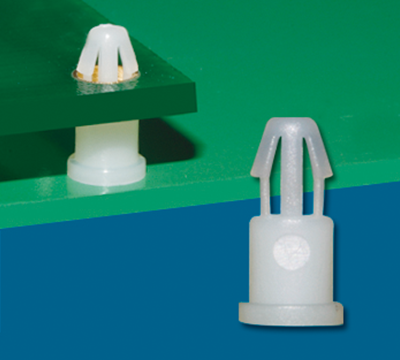

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
SPACER SUPPORT PCF-2A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

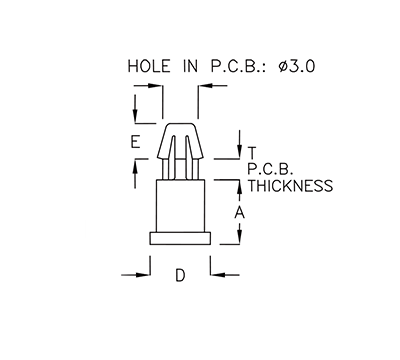

| PART NO | A | T P.C.B THICKNESS |
E | D | PACKAGE |
|---|---|---|---|---|---|
| PCF-2A | 2.5 | 1.4~1.6 | 2.95 | Ø5.0 | 2000 |
| PCF-2C | 2.8 | 1.4~1.6 | 2.95 | Ø5.0 | |
| PCF-03 | 3.0 | 1.4~1.6 | 3.1 | Ø5.0 | |
| PCF-3A | 3.2 | 1.4~1.6 | 3.1 | Ø5.0 | |
| PCF-3C | 3.0 | 1.4~1.6 | 2.95 | Ø6.0 | |
| PCF-3M | 3.5 | 1.4~1.6 | 3.0 | Ø5.0 | |
| PCF-04 | 4.0 | 1.4~1.6 | 3.0 | Ø5.0 | |
| PCF-4A | 4.5 | 1.4~1.6 | 2.95 | Ø5.0 | |
| PCF-05 | 5.0 | 1.4~1.6 | 3.0 | Ø5.0 | |
| PCF-5A | 5.0 | 1.4~1.6 | 3.1 | Ø5.0 | |
| PCF-09 | 9.0 | 1.4~1.6 | 2.95 | Ø9.0 | |
| PCF-9FK | 9.4 | 1.4~1.6 | 2.9 | Ø6.0 |
