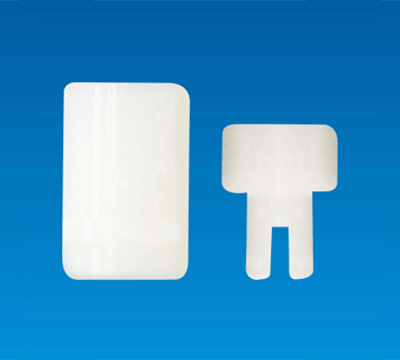

SPACER SUPPORT RL-1

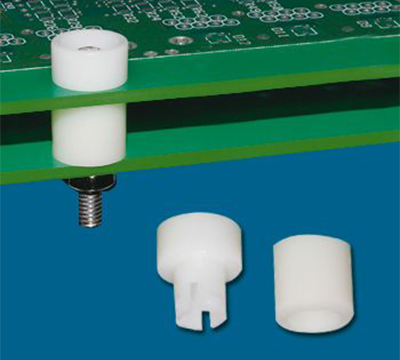

- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPACER SUPPORT RL-1
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPECIFICATION
- MATERIAL: ABS
- FLAME CLASS: M4
- SCREW: M4
- P.C.B MAX THICKNESS: 2.0mm
- COLOR: NATURAL

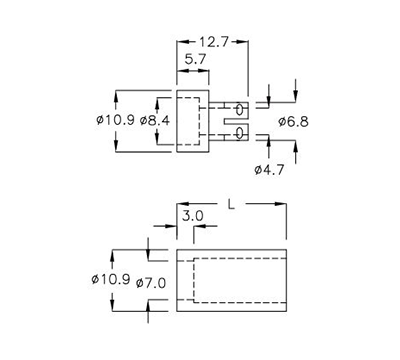

| PART NO | L | HOLE IN P.C.B |
HOLE IN CHASSIS |
PACKAGE | |
|---|---|---|---|---|---|
| RL-1 | RL-6S | 5.7 | Ø7.2 | Ø4.5 | 2000 |
| RL-10 | 10.0 | Ø7.2 | Ø4.5 | 1000 | |
| RL-15 | 15.2 | Ø7.2 | Ø4.5 | 1000 | |
| RL-20 | 20.2 | Ø7.2 | Ø4.5 | 1000 | |
| RL-25 | 25.2 | Ø7.2 | Ø4.5 | 1000 | |
