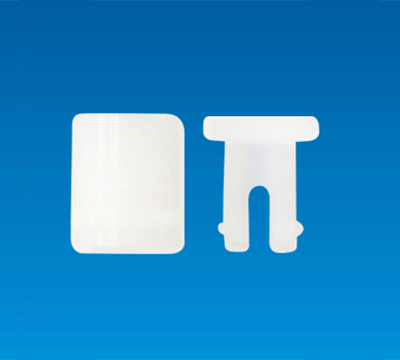

SPACER SUPPORT RS-1

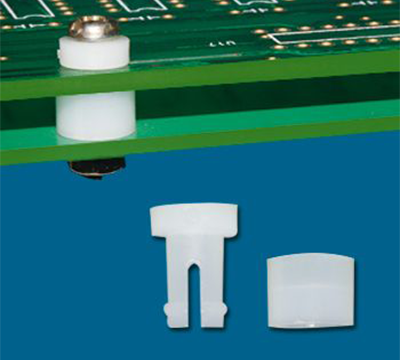

- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPACER SUPPORT RS-1
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- SCREW: M3
- P.C.B MAX THICKNESS: 2.4mm
- COLOR: NATURAL
| PART NO | L |
HOLE |
HOLE |
PACKAGE | |
|---|---|---|---|---|---|
|

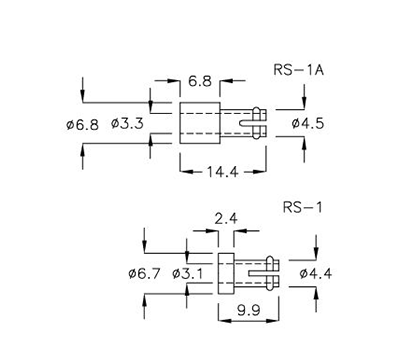

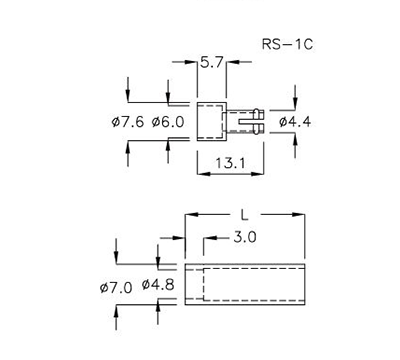

RS-1 RS-1A RC-1C |
RS-57 | 6.0 | Ø5.0 | Ø3.5 | 1000 |
| RS-78 | 7.8 | ||||
| RS-105 | 10.5 | Ø5.0 | Ø3.5 | ||
| RS-145 | 14.5 | ||||
| RS-160 | 16.0 | ||||
| RS-180 | 18.4 | ||||
| RS-215 | 21.5 | Ø5.0 | Ø3.5 | ||
| RS-280 | 28.2 | Ø5.0 | Ø3.5 | ||
