SPACER SUPPORT SCC-21

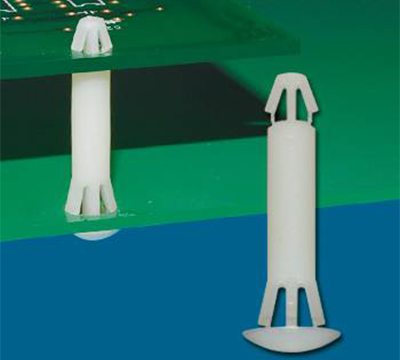

- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.

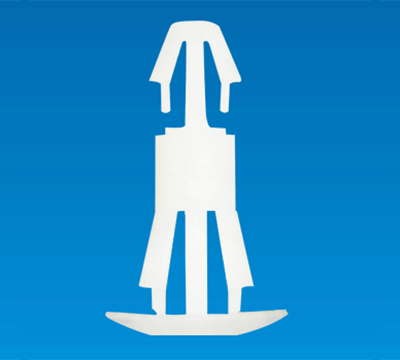

SPACER SUPPORT SCC-21
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- HOLE IN CHASSIS: Ø5.5

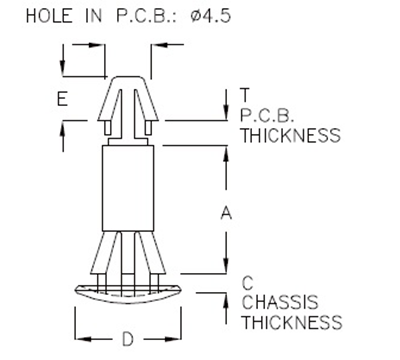

| PART NO | A | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
D | E | PACKAGE |
|---|---|---|---|---|---|---|
| SCC-21 | 21.0 | 1.4~1.6 | 0.8~1.0 | Ø10.0 | 4.0 | 1000 |
