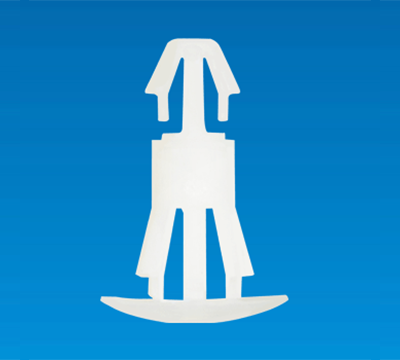

SPACER SUPPORT SCC-3

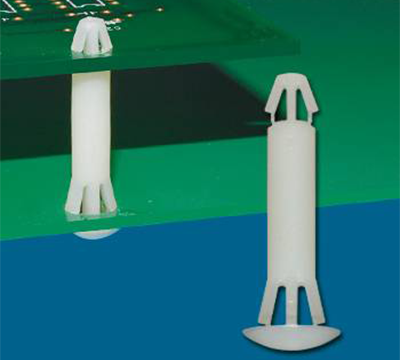

- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT SCC-3
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- HOLE IN CHASSIS: Ø5.5

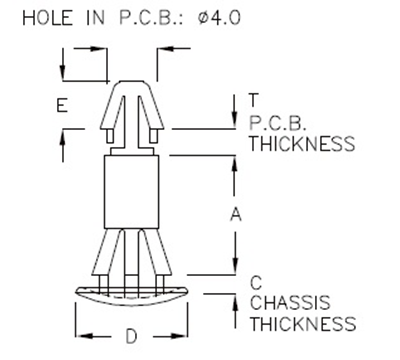

| PART NO | A | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
D | E | PACKAGE |
|---|---|---|---|---|---|---|
|
SCC-3
|
3.5 | 1.2~1.6 | 1.6~2.2 | Ø11.45 | 4.0 | 1000 |
|
SCC-3A
|
3.1 | 1.5~1.7 | 1.8~2.2 | Ø11.45 | 4.0 | |
|
SCC-3C
|
3.5 | 1.8~2.3 | 1.8~2.2 | Ø11.45 | 4.0 | |
|
SCC-5
|
5.0 | 1.2~1.6 | 1.6~2.2 | Ø11.45 | 4.0 | |
|
SCC-6
|
6.35 | 1.4~1.9 | 1.6~2.2 | Ø11.45 | 4.0 | |
|
SCC-8
|
8.2 | 1.3~1.7 | 1.6~2.2 | Ø11.45 | 4.0 | |
|
SCC-8D
|
7.9 | 1.3~1.7 | 1.6~2.2 | Ø11.45 | 4.0 | |
|
SCC-10
|
10.0 | 1.4~1.8 | 1.6~2.2 | Ø11.45 | 4.0 | |
|
SCC-10A
|
10.0 | 1.8~2.2 | 1.6~2.2 | Ø11.45 | 4.0 | |
|
SCC-10C
|
10.0 | 2.8~3.2 | 1.6~2.2 | Ø11.45 | 4.0 | |
|
SCC-12
|
12.7 | 1.2~1.6 | 1.6~2.2 | Ø11.45 | 4.0 | |
|
SCC-15
|
15.7 | 1.3~1.7 | 1.6~2.2 | Ø11.45 | 4.0 | |
|
SCC-19
|
19.0 | 1.3~1.7 | 1.6~2.2 | Ø11.45 | 4.0 | |
|
SCC-19A
|
19.1 | 1.6~2.0 | 1.6~2.2 | Ø11.45 | 4.0 | |
|
SCC-20
|
20.0 | 1.2~1.6 | 1.6~2.2 | Ø11.45 | 4.0 | 500 |
|
SCC-24
|
23.8 | 1.3~1.7 | 1.6~2.0 | Ø11.45 | 4.0 | |
|
SCC-26A
|
25.8 | 1.4~1.6 | 1.7~2.3 | Ø11.45 | 4.0 | |
|
SCC-32
|
32.0 | 1.4~1.6 | 1.7~2.3 | Ø11.45 | 4.0 |
