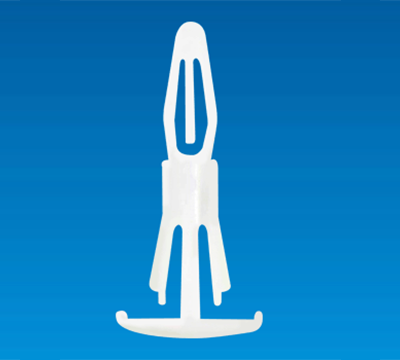

SPACER SUPPORT SCD-10

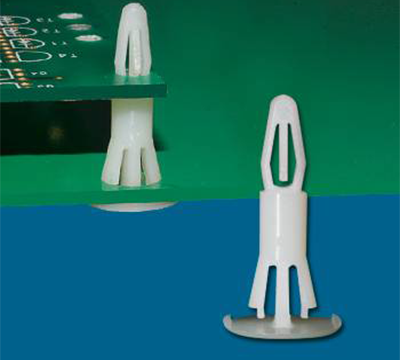

- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance,space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT SCD-10
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance,space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

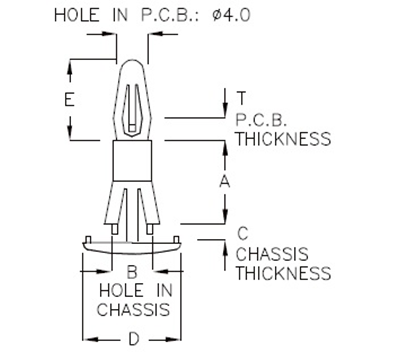

| PART NO | A | B HOLE IN CKNESS |
T P.C.B THICKNESS |
C CHASSIS THICKNESS |
D | E | PACKAGE |
|---|---|---|---|---|---|---|---|
| SCD-10 | 10.0 | Ø5.5 | 1.2~1.7 | 1.0~1.6 | Ø11.4 | 10.6 | 500 |
| SCD-12 | 12.7 | Ø5.5 | 1.2~1.7 | 1.0~1.5 | Ø12.8 | 10.6 | 500 |
| SCD-15 | 15.9 | Ø5.4 | 1.2~1.6 | 1.0~1.6 | Ø12.7 | 9.6 | 500 |
