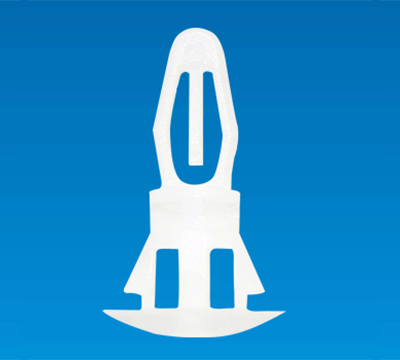

SPACER SUPPORT SCD-6A

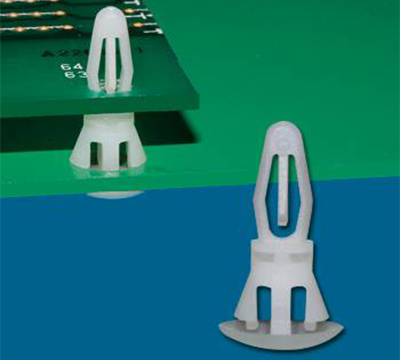

- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT SCD-6A
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- HOLE IN CHASSIS: Ø6.0

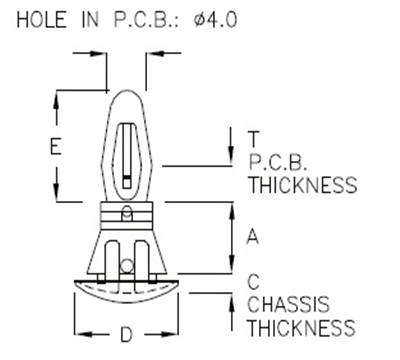

| PART NO | A | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
D | E | PACKAGE |
|---|---|---|---|---|---|---|
| SCD-6A | 6.4 | 1.2~1.7 | 0.8~1.2 | Ø10.0 | 10.1 | 1000 |
