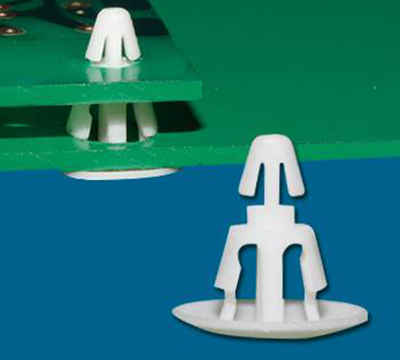

SPACER SUPPORT SCE-3A
- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance,space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.

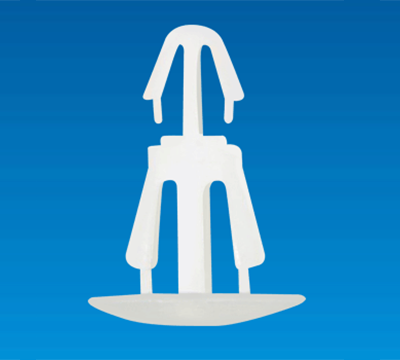

SPACER SUPPORT SCE-3A
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance,space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- HOLE IN CHASSIS: Ø5.5

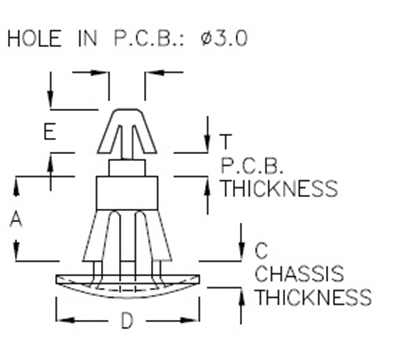

| PART NO | A | T P.C.B THICKNESS |
C CHASSIS THICKNESSD |
D | E | PACKAGE |
|---|---|---|---|---|---|---|
| SCE-3A | 3.5 | 1.2~1.7 | 1.1~1.7 | Ø11.45 | 3.6 | 1000 |
| SCE-4KD | 4.8 | 1.2~1.7 | 1.1~1.6 | Ø11.45 | 3.6 | 1000 |
| SCE-6 | 6.35 | 1.2~1.7 | 1.1~1.6 | Ø11.45 | 3.6 | 1000 |
| SCE-07 | 7.0 | 1.2~1.7 | 1.1~1.6 | Ø11.45 | 3.6 | 1000 |
| SCE-8 | 8.0 | 1.2~1.7 | 1.1~1.6 | Ø11.45 | 3.6 | 1000 |
| SCE-10 | 9.7 | 1.2~1.7 | 1.1~1.6 | Ø11.45 | 3.6 | 500 |
| SCE-10A | 10.5 | 1.2~1.7 | 1.1~1.6 | Ø11.45 | 3.6 | 500 |
| SCE-10C | 9.7 | 1.2~1.7 | 1.1~1.6 | Ø7.0 | 3.6 | 500 |
| SCE-11 | 11.0 | 1.2~1.7 | 1.1~1.6 | Ø11.45 | 3.6 | 500 |
