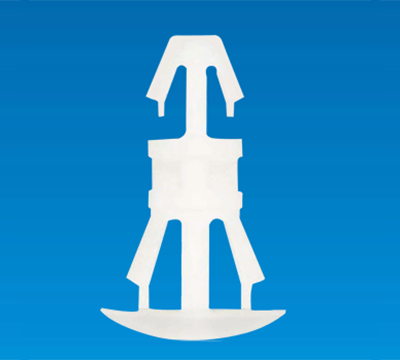

SPACER SUPPORT SCF-5

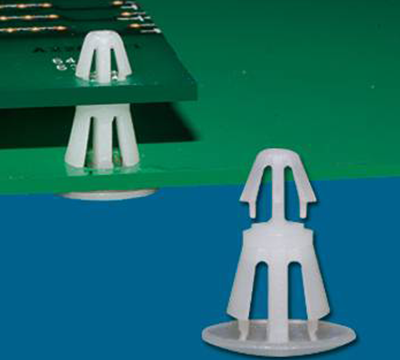

- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT SCF-5
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- HOLE IN CHASSIS: Ø6.0

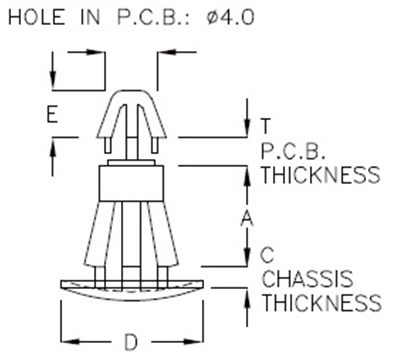

| PART NO | A | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
D | E | PACKAGE |
|---|---|---|---|---|---|---|
| SCF-5 | 5.0 | 1.2~1.7 | 0.8~1.6 | Ø11.55 | 4.0 | 1000 |
| SCF-06 | 6.35 | 1.2~1.7 | 0.8~1.6 | Ø11.55 | 4.1 | |
| SCF-8 | 8.0 | 1.2~1.7 | 0.8~1.6 | Ø11.55 | 4.0 | 500 |
| SCF-10 | 10.0 | 1.2~1.7 | 0.8~1.6 | Ø11.55 | 4.1 | |
| SCF-12 | 12.7 | 1.2~1.7 | 0.8~1.6 | Ø11.55 | 4.0 | |
| SCF-15AP | 15.9 | 1.2~1.7 | 0.8~2.0 | Ø11.0 | 3.0 | |
| SCF-21J | 21.6 | 1.2~1.6 | 0.6~0.8 | Ø11.55 | 4.0 |
