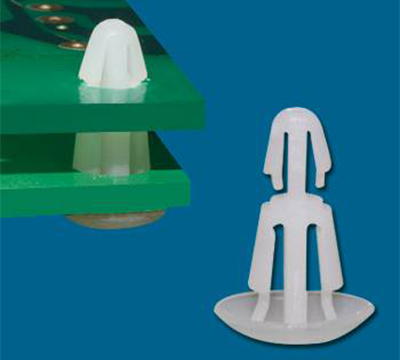

    SPACER SUPPORT SCK-2C

    • Insert from the chassis underside to fit both holes on chassis and circuit board.
    • Provides distance,space and support between Circuit board and chassis.
    • Minimize the protrusion on chassis bottom.
    • Reverse locking circuit board.
    add to cart Inquiry Now

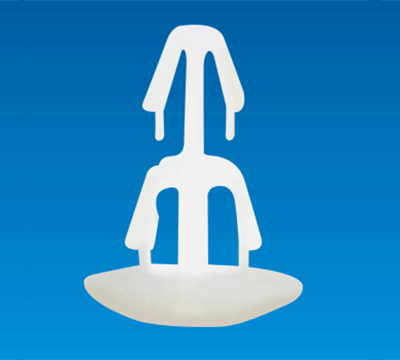

    SPACER SUPPORT SCK-2C

    FEATURES
    • Insert from the chassis underside to fit both holes on chassis and circuit board.
    • Provides distance,space and support between Circuit board and chassis.
    • Minimize the protrusion on chassis bottom.
    • Reverse locking circuit board.

    SPECIFICATION
    • MATERIAL: NYLON66 (UL)
    • FLAME CLASS: 94V-2
    • COLOR: NATURAL
    • HOLE IN CHASSIS: Ø4.0

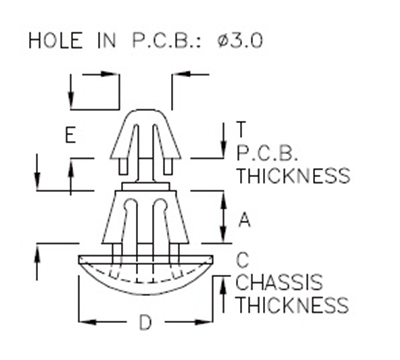

    PART NO A T
    P.C.B
    THICKNESS    		 C
    CHASSIS
    THICKNESS    		 D E PACKAGE
    SCK-2C 2.5 1.4~1.6 0.8~1.0 Ø5.8 2.7 2000
    SCK-2K 2.5 1.6~1.9 0.8~1.0 Ø5.8 2.65 2000
    SCK-3A 3.2 1.4~1.6 0.8~1.6 Ø8.0 3.0 1000
    SCK-04 4.0 1.4~1.6 0.8~1.6 Ø8.2 3.1 1000
    SCK-4AM 4.5 1.4~1.6 0.8~1.6 Ø8.2 3.1 1000
    SCK-05 5.0 1.4~1.6 0.8~1.2 Ø5.8 3.1 1000
    SCK-5QN 5.5 1.4~1.6 0.8~1.6 Ø8.2 3.1 1000
    SCK-06 6.0 1.4~1.6 0.8~1.6 Ø8.2 2.95 1000
    SCK-07 7.0 1.4~1.6 0.8~1.6 Ø8.2 3.1 1000
    SCK-08 8.0 1.4~1.6 0.8~1.6 Ø8.2 3.1 1000
    SCK-10 10.0 1.4~1.6 0.8~1.6 Ø8.2 3.1 1000
    SCK-12 12.0 1.4~1.6 0.8~1.6 Ø8.0 2.9.5 1000
    SCK-16YT 16.0 1.4~1.6 1.4~1.6 Ø8.0 2.9 1000
