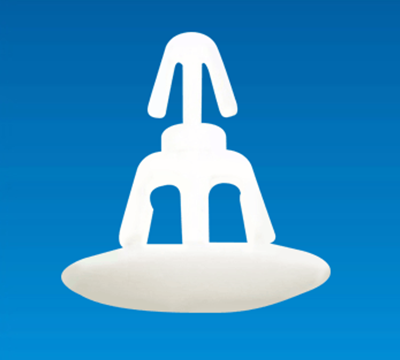

SPACER SUPPORT SCK-2DM

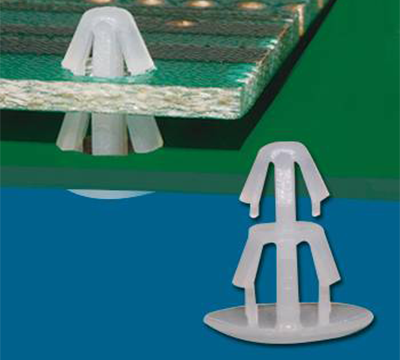

- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance,space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT SCK-2DM
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance,space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- HOLE IN CHASSIS: Ø4.0

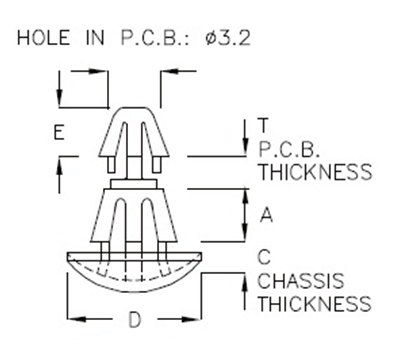

| PART NO | A | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
D | E | PACKAGE |
|---|---|---|---|---|---|---|
| SCK-2DM | 2.8 | 0.8~1.0 | 1.8 | Ø8.0 | 3.0 | 2000 |
