Components & Accessories

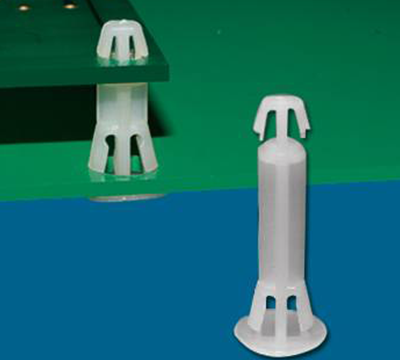

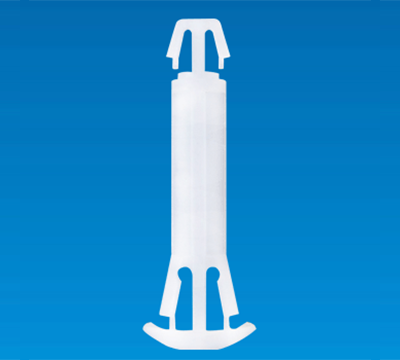

SPACER SUPPORT SCM-19
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Square hole fitting.
- Easily assembly.
SPACER SUPPORT SDA-10
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Square hole fitting.
- Easily assembly.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
FLAME CLASS: 94V-2
COLOR: NATURAL
HOLE IN CHASSIS: Ø5.5

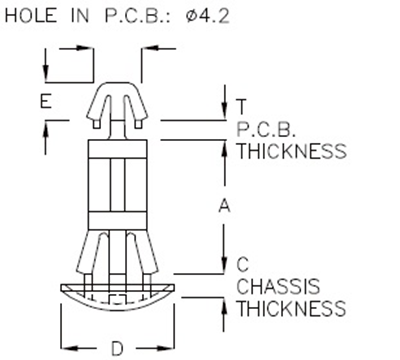

| PART NO | A | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
D | E | PACKAGE |
|---|---|---|---|---|---|---|
| SCM-191 | 19.0 | 1.0 | 0.6~0.8 | Ø10.0 | 3.3 | 500 |
| SCM-25 | 25.0 | 1.6 | 0.6~0.8 | Ø10.0 | 2.7 | 500 |
