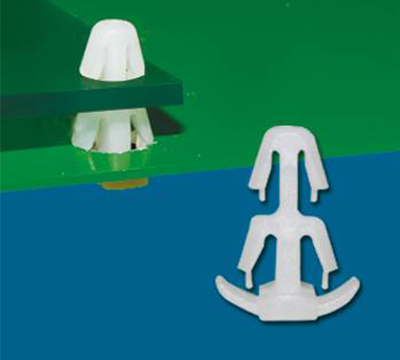

SPACER SUPPORT SCP-3A
- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.

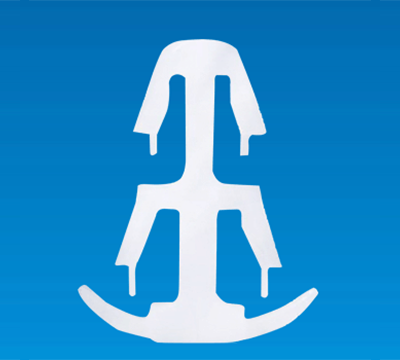

SPACER SUPPORT SCP-3A
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- HOLE IN CHASSIS: Ø5.5

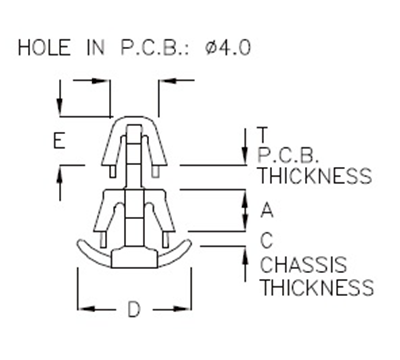

| PART NO | A | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
D | E | PACKAGE |
|---|---|---|---|---|---|---|
| SCP-3A | 3.5 | 1.4~1.6 | 0.5~0.8 | Ø9.5 | 4.0 | 2000 |
