SPACER SUPPORT SCQ-09
- Insert from the chassis underside.

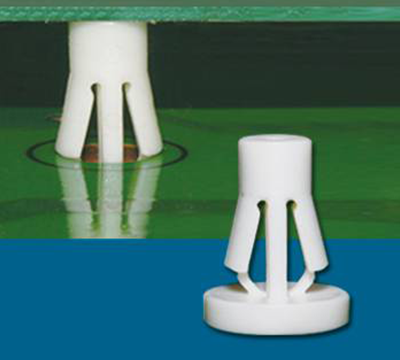

- Provides distance,space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.

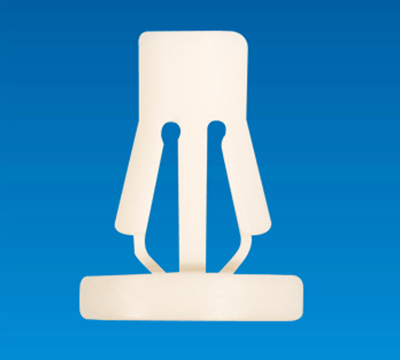

SPACER SUPPORT SCQ-09
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside.
- Provides distance,space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- HOLE IN CHASSIS: Ø5.6

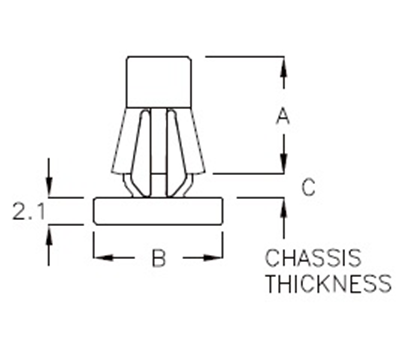

| PART NO | A | B | C CHASSIS THICKNESS |
PACKAGE |
|---|---|---|---|---|
| SCQ-09 | 9.0 | Ø10.0 | 1.6 | 1000 |
