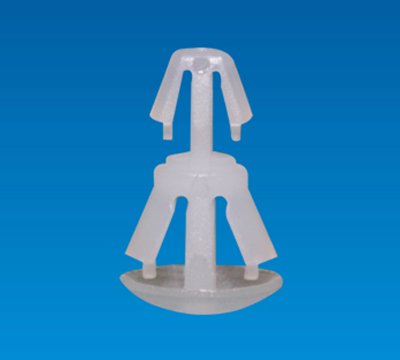

SPACER SUPPORT SCS-4KP

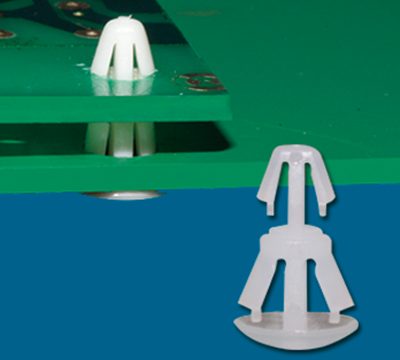

- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Square hole fitting.
- Easily assembly.
SPACER SUPPORT SCS-4KP
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Square hole fitting.
- Easily assembly.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- HOLE IN CHASSIS: Ø5.5

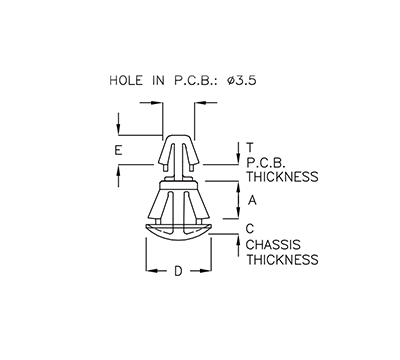

| PART NO | A | T P.C.B. THICKNESS |
C CHASSIS THICKNESS |
D | E | PACKAGE |
|---|---|---|---|---|---|---|
| SCS-4KP | 4.5 | 1.6~1.8 | 0.8~1.0 | Ø7.8 | 3.5 | 1000 |
| SCU-11K | 11.0 | 1.4~1.6 | 0.8~1.2 | Ø9.5 | 2.8 | 1000 |
