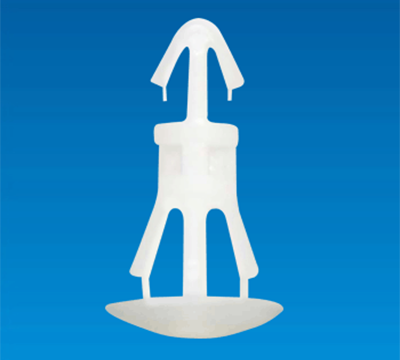

SPACER SUPPORT SCT-05

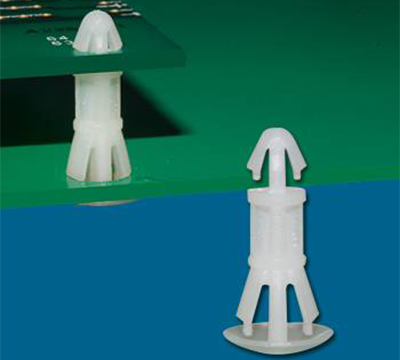

- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance,space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT SCT-05
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance,space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- HOLE IN CHASSIS: Ø5.5
|

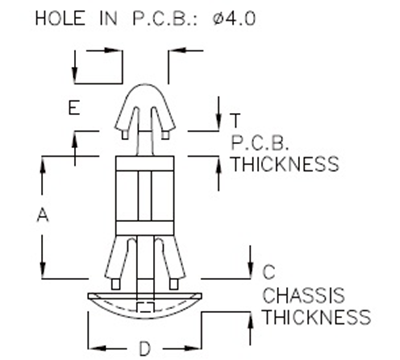

PART NO
|
A
|
T
P.C.B
THICKNESS
|
C
CHASSIS
THICKNESS
|
D
|
E
|
PACKAGE
|
|---|---|---|---|---|---|---|
|
SCT-05
|
5.0
|
1.2~1.6
|
1.4~2.0
|
Ø9.8
|
4.0
|
1000
|
|
SCT-6KT
|
6.35
|
1.2~1.6
|
1.4~2.0
|
Ø9.8
|
4.0
|
1000
|
|
SCT-08
|
8.0
|
1.2~1.6
|
1.4~2.0
|
Ø9.8
|
4.0
|
1000
|
|
SCT-8C
|
8.0
|
1.2~1.6
|
1.1~1.8
|
Ø9.6
|
4.0
|
1000
|
|
SCT-12C
|
11.9
|
1.2~1.6
|
1.1~1.8
|
Ø9.7
|
4.0
|
1000
|
|
SCT-18
|
18.0
|
1.2~1.6
|
1.0~2.0
|
Ø9.8
|
4.0
|
1000
|
|
SCT-18K
|
18.0
|
1.2~1.6
|
1.8~2.2
|
Ø9.8
|
4.0
|
1000
|
