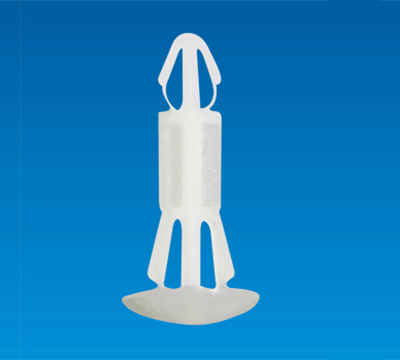

SPACER SUPPORT SCT-06

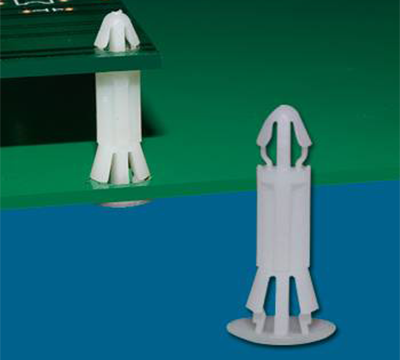

- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT SCT-06
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- HOLE IN CHASSIS: Ø5.5

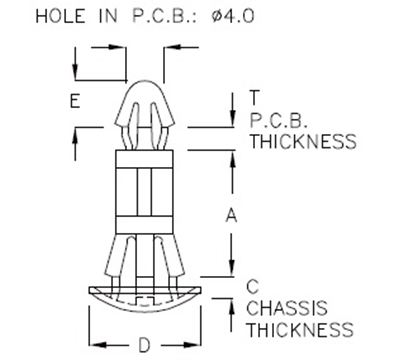

| PART NO | A | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
D | E | PACKAGE |
|---|---|---|---|---|---|---|
| SCT-06 | 6.0 | 1.2~1.6 | 1.2~1.6 | Ø10.0 | 4.0 | 1000 |
| SCT-7 | 7.0 | 1.2~1.6 | 1.3~2.0 | Ø11.2 | 4.0 | 1000 |
| SCT-12A | 12.0 | 1.2~1.6 | 1.1~2.0 | Ø9.9 | 4.0 | 1000 |
| SCT-13A | 13.5 | 1.2~1.6 | 0.8~1.6 | Ø9.9 | 4.0 | 1000 |
| SCT-14 | 14.0 | 1.2~1.6 | 1.3~2.0 | Ø9.9 | 4.0 | 1000 |
| SCT-21A | 21.7 | 1.2~1.6 | 0.8~1.6 | Ø9.9 | 4.0 | 500 |
