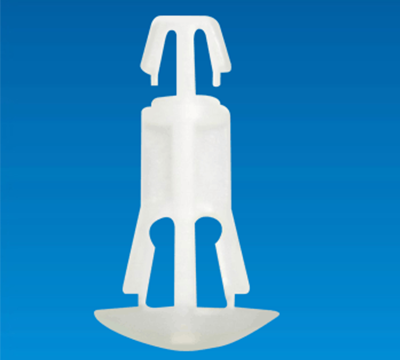

SPACER SUPPORT SCT-10A

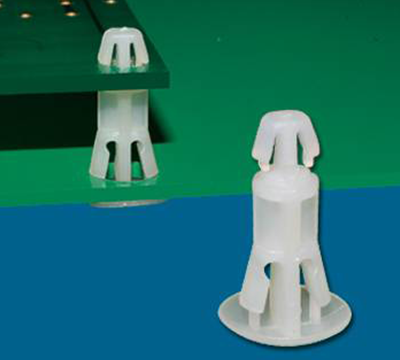

- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance,space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT SCT-10A
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside to fit both holes on chassis and circuit board.
- Provides distance,space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- HOLE IN CHASSIS: Ø5.5

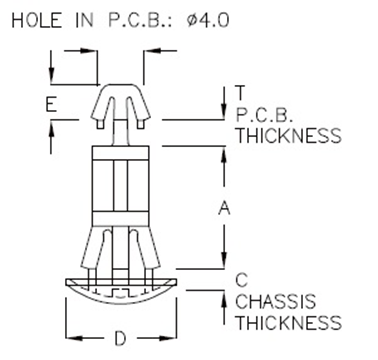

| PART NO | A | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
D | E | PACKAGE |
|---|---|---|---|---|---|---|
| SCT-10A | 10.0 | 1.2~1.6 | 0.8~1.6 | Ø10.0 | 3.2 | 1000 |
| SCT-19 | 19.0 | 1.2~1.6 | 0.8~1.6 | Ø10.0 | 3.2 | 1000 |
| SCT-19A | 19.0 | 1.2~1.6 | 0.6 | Ø10.0 | 3.4 | 1000 |
