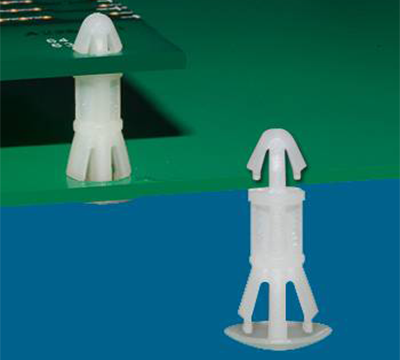

SPACER SUPPORT SCT-3
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mounted end slides in.
- Easily removed for repairing or changing.

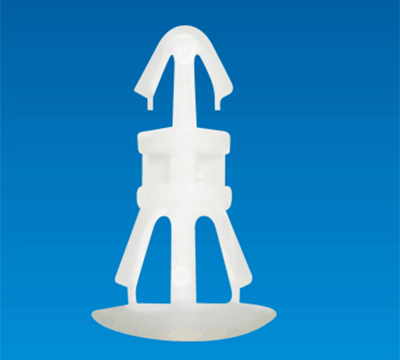

SPACER SUPPORT SCT-3
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mounted end slides in.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- HOLE IN CHASSIS: Ø5.5

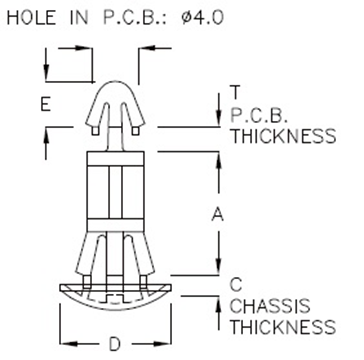

| PART NO | A | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
D | E | PACKAGE |
|---|---|---|---|---|---|---|
| SCT-3 | 3.0 | 1.2~1.6 | 0.8~1.6 | Ø9.8 | 4.0 | 1000 |
| SCT-3A | 3.5 | 1.2~1.6 | 0.8~1.0 | Ø9.8 | 3.6 | 1000 |
| SCT-10 | 10.0 | 1.2~1.6 | 1.4~2.0 | Ø9.8 | 4.5 | 1000 |
