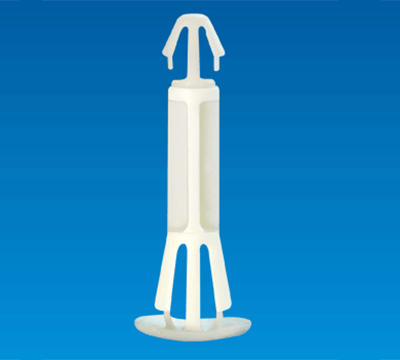

SPACER SUPPORT SCX-15

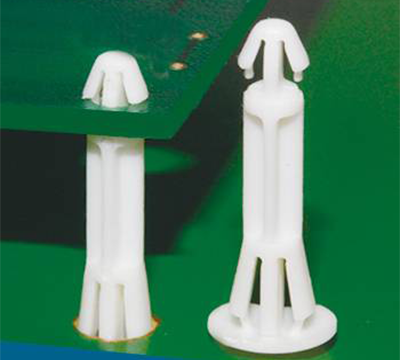

- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Square hole fitting.
- Easily assembly.
SPACER SUPPORT SCX-15
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Square hole fitting.
- Easily assembly.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

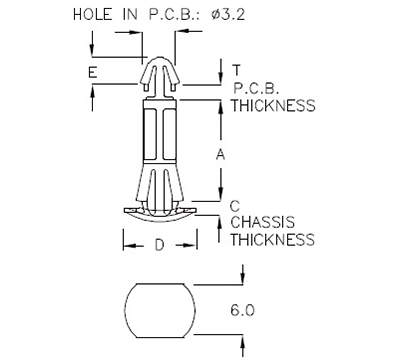

- HOLE IN CHASSIS: Ø4.0
| PART NO | A | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
D | E | PACKAGE |
|---|---|---|---|---|---|---|
| SCX-15 | 15.0 | 1.6 | 1.0 | Ø 8.0 | 3.0 | 1000 |
| SCX-35C | 35.3 | 1.6 | 1.0 | Ø 8.0 | 3.0 | 500 |
