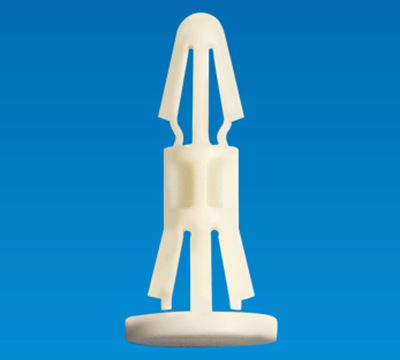

SPACER SUPPORT SDA-10

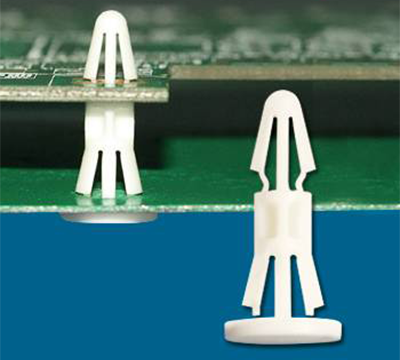

- Snap fit to joint PCBs.
- Provides distance,space and support between Circuit boards.
- Dual mini locking head design.
- One piece design,no screws,nuts and washers needed.
- One end tension wings design,provide a tight fit.
SPACER SUPPORT SDA-10
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance,space and support between Circuit boards.
- Dual mini locking head design.
- One piece design,no screws,nuts and washers needed.
- One end tension wings design,provide a tight fit.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- HOLE IN CHASSIS: Ø5.5

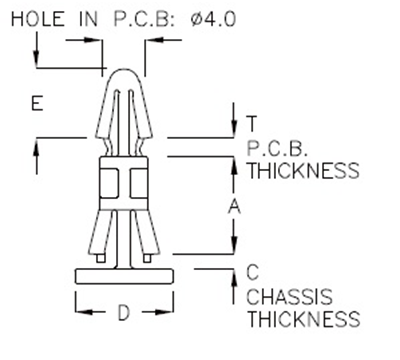

| PART NO | A | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
D | E | PACKAGE |
|---|---|---|---|---|---|---|
| SDA-10 | 10.0 | 1.2~1.6 | 0.8~1.2 | Ø10.0 | 7.1 | 1000 |
