SPACER SUPPORT TAA-01

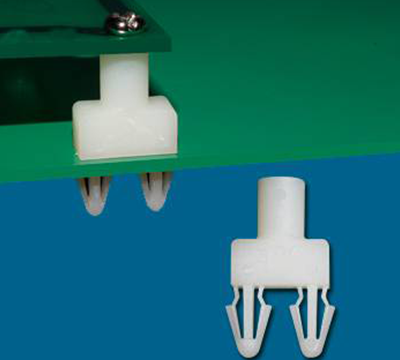

- Snap fit to joint PCBs or joint with chassis.
- Twin snap pins design,uses with tapping screw.
- Provides distance and space between Circuit boards.
- Easily assembly for application.

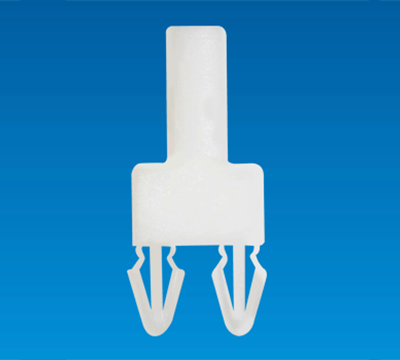

SPACER SUPPORT TAA-01
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs or joint with chassis.
- Twin snap pins design,uses with tapping screw.
- Provides distance and space between Circuit boards.
- Easily assembly for application.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

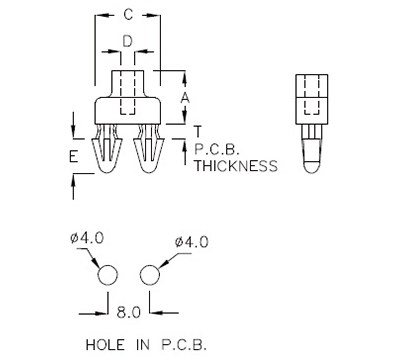

| PART NO | A | T P.C.B THICKNESS |
C | D TAPPING SCREW |
E | PACKAGE |
|---|---|---|---|---|---|---|
| TAA-01 | 13.8 | 2.0 | 12.5 | M3x8 | 6.7 | 500 |
| TAA-03 | 21.0 | 1.6 | 12.5 | M3x8 | 6.7 | 500 |
| TAA-04 | 15.0 | 2.0 | 12.5 | M3x8 | 6.7 | 500 |
| TAA-05 | 5.0 | 1.6 | 12.5 | M3x4 | 6.7 | 500 |
| TAA-06 | 14.1 | 2.5 | 12.5 | M3x8 | 6.7 | 500 |
