Components & Accessories

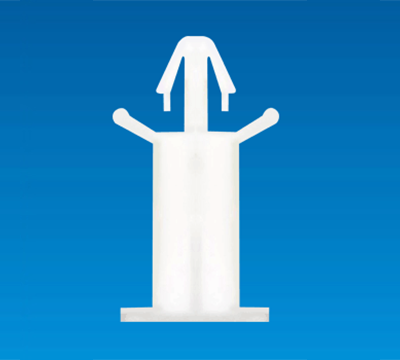

SPACER SUPPORT TAJ-12

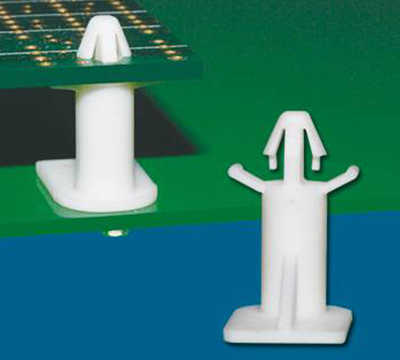

- Snap fit to joint PCBs.
- Provides distance,space and support between Circuit boards.
- Use with tapping screw,increase strength of holding.
SPACER SUPPORT TAJ-12
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance,space and support between Circuit boards.
- Use with tapping screw,increase strength of holding.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

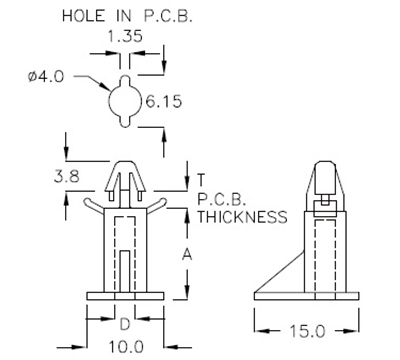

| PART NO | A | T P.C.B THICKNESS |
SCREW & THICKNESS D TAPPING SCREW |
SCREW & THICKNESS SUITABLE THICKNESS |
PACKAGE |
|---|---|---|---|---|---|
| TAJ-12 | 12.0 | 1.2~2.1 | M3x8 | 1.0 | 500 |
