Components & Accessories

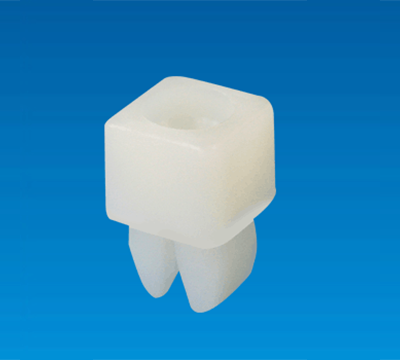

SPACER SUPPORT TB-6

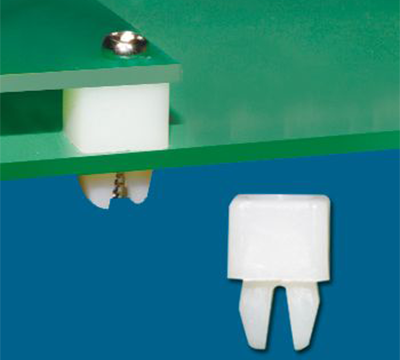

- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- #6-32 UNC Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPACER SUPPORT TB-6
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- #6-32 UNC Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- USE STANDARD TAPPING SCREW: TAPPING SCREW #6-32UNC
- COLOR: NATURAL

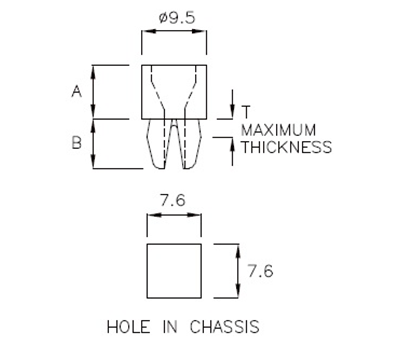

| PART NO | A | B | T MAXMUM THICKNESS |
PACKAGE |
|---|---|---|---|---|
| TB-6 | 1.3 | 7.0 | 2.2 | 1000 |
| TB-6A | 1.0 | 7.0 | 2.2 | 1000 |
| TB-7 | 7.6 | 7.1 | 2.2 | 500 |
