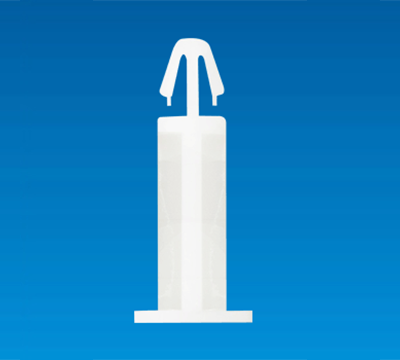

SPACER SUPPORT TCK-15

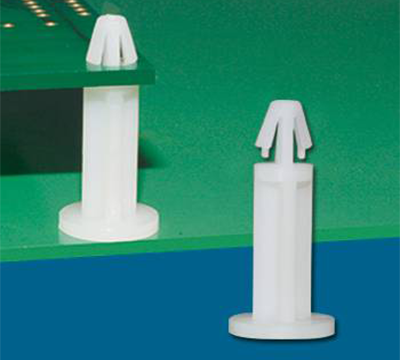

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
SPACER SUPPORT TCK-15
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

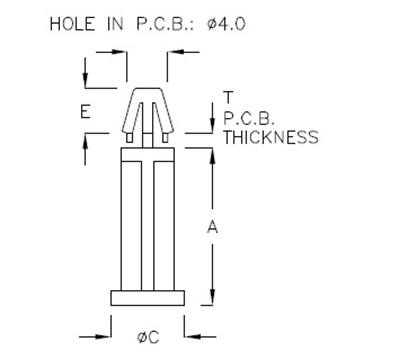

| PART NO | A | T P.C.B THICKNESS |
C | E | PACKAGE |
|---|---|---|---|---|---|
| TCK-15 | 15.5 | 1.2~1.4 | 10.9 | 5.0 | 1000 |
| TCK-17 | 17.5 | 1.2~1.4 | 10.9 | 5.0 | 500 |
| TCK-21A | 21.5 | 1.2~1.6 | 8.0 | 3.0 | 500 |
