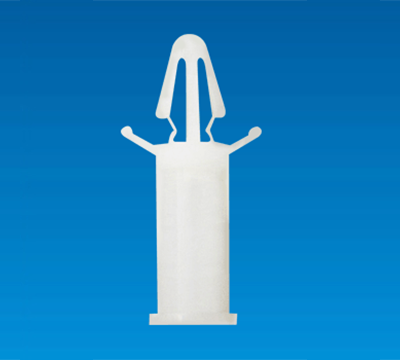

SPACER SUPPORT TCM3-7

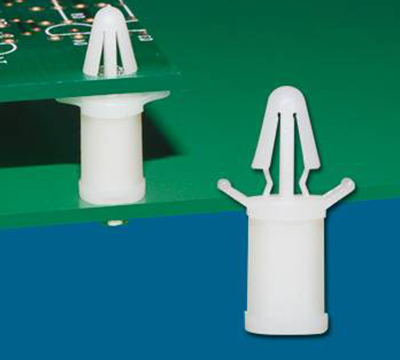

- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- M3x8mm Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPACER SUPPORT TCM3-7
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- M3x8mm Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

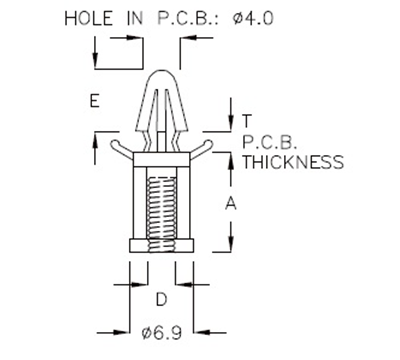

| PART NO | A | T P.C.B THICKNESS |
SCREW & THICKNESS | E | PACKAGE | |
| D TAPPING SCREW |
SUITABLE THICKNESS |
|||||
| TCM3-7 | 7.0 | 1.2~1.7 | M3x7 | 1.0 | 6.8 | 1000 |
| TCM3-8M | 8.5 | 1.2~1.7 | M3x6 | 1.0 | 6.8 | |
| TCM3-11 | 11.0 | 1.2~1.7 | M3x8 | 1.0 | 6.8 | |
