Components & Accessories

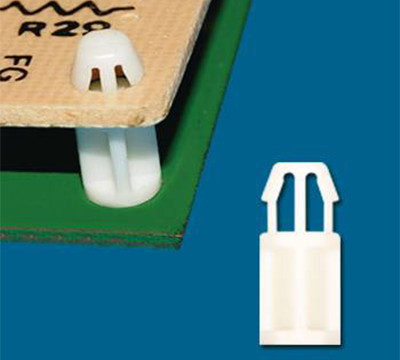

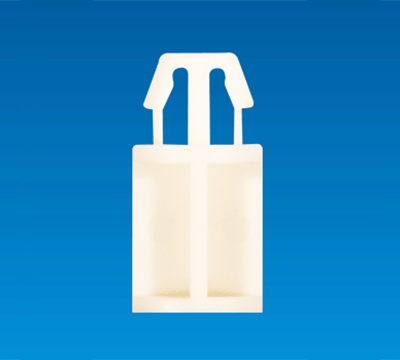

SPACER SUPPORT TCY-09
- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT TCY-09
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
|

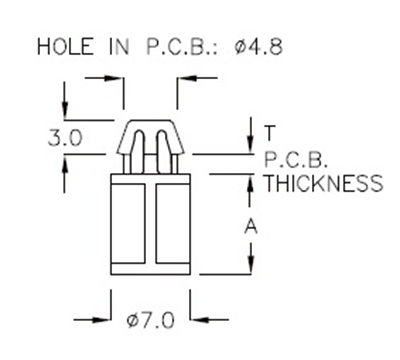

PART NO
|
A
|
T
P.C.B
THICKNESS
|
PACKAGE
|
|---|---|---|---|
|
TCY-09
|
9.0
|
1.2~1.6
|
1000
|
|
TCY-12A
|
12.8
|
1.2~1.6
|
|
|
TCY-16
|
16.0
|
1.2~1.6
|
|
|
TCY-18
|
18.0
|
1.2~1.6
|
|
|
TCY-22
|
22.0
|
1.2~1.6
|
