SPACER SUPPORT TS-18

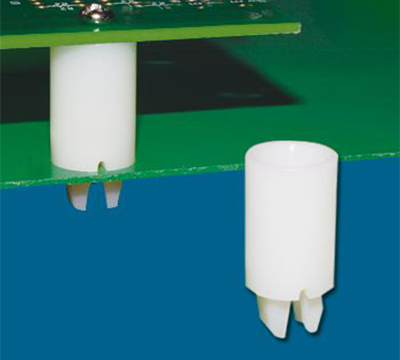

- Joint Circuit board with Chassis.
- Provides distance,space and support between Circuit board and chassis.
- #6-32 UNC Screw Mount design,offer extremely strength to fix circuit board on chassis.
SPACER SUPPORT TS-18
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.
- Provides distance,space and support between Circuit board and chassis.
- #6-32 UNC Screw Mount design,offer extremely strength to fix circuit board on chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- USE STANDARD TAPPING SCREW: TAPPING SCREW #6-32UNC
- COLOR: NATURAL

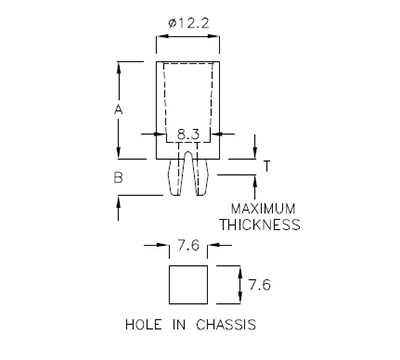

| PART NO | A | B | T MAXMUM THICKNESS |
PACKAGE |
|---|---|---|---|---|
| TS-18 | 18.8 | 7.0 | 2.2 | 500 |
