Components & Accessories

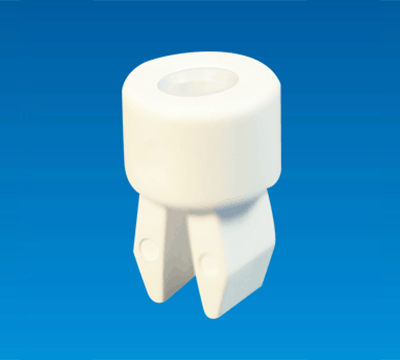

SPACER SUPPORT TSC-4DK

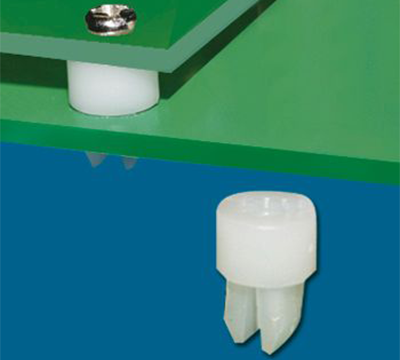

- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT TSC-4DK
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- USE STANDARD TAPPING SCREW: TAPPING M3
- COLOR: NATURAL

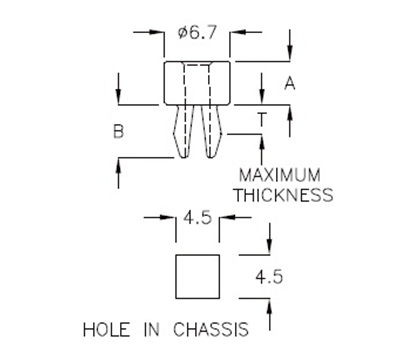

| PART NO | A | B | T MAXMUM THICKNESS |
PACKAGE |
|---|---|---|---|---|
| TSC-4DK | 4.5 | 5.4 | 2.3 | 1000 |
