Components & Accessories

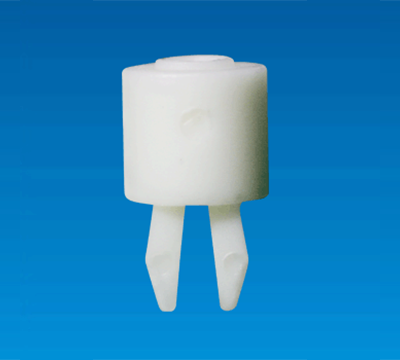

SPACER SUPPORT TSD-6M

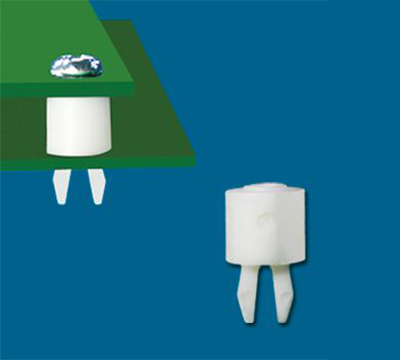

- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT TSD-6M
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- USE STANDARD TAPPING SCREW: TAPPING M2.5

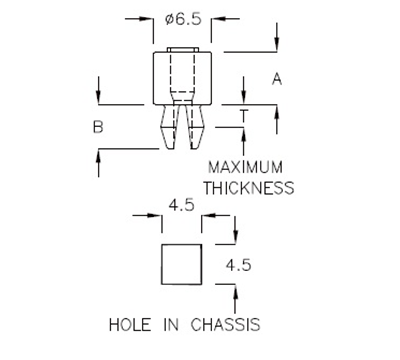

| PART NO | A | B | T MAXMUM THICKNESS |
PACKAGE |
|---|---|---|---|---|
| TSD-6M | 6.0 | 4.9 | 1.6 | 1000 |
