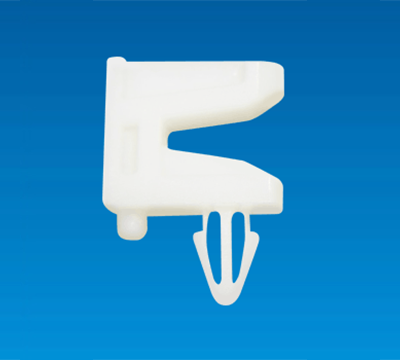

SPACER SUPPORT UB-05A

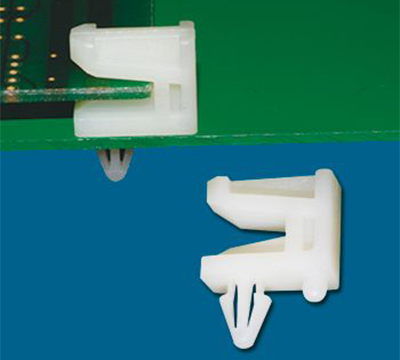

- Joint PCB with Chassis.
- Provides distance,space and support between Circuit boards.
- Slide installation, no need for a mounting hole on top PCB.
SPACER SUPPORT UB-05A
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis.
- Provides distance,space and support between Circuit boards.
- Slide installation, no need for a mounting hole on top PCB.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

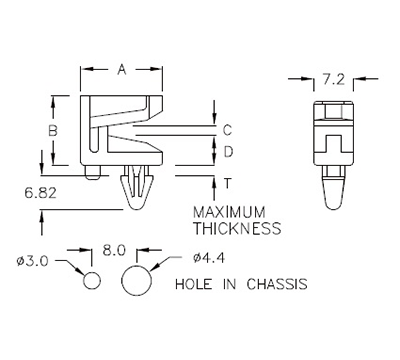

| PART NO | A | B | C | D | T DP.C.B THICKNESS |
PACKAGE |
|---|---|---|---|---|---|---|
| UB-05A | 15.0 | 12.8 | 1.8 | 5.5 | 1.6 | 500 |
