Components & Accessories

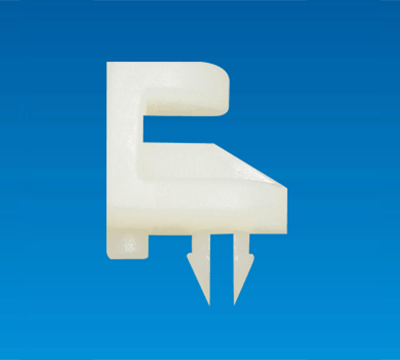

SPACER SUPPORT UB-6

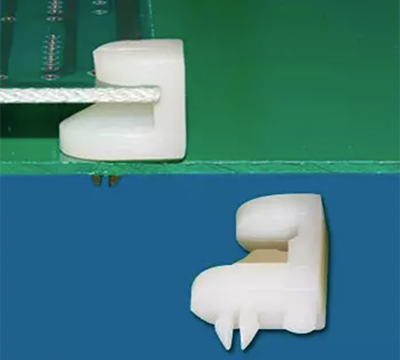

- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Slide installation, no need for a mounting hole on top PCB.
SPACER SUPPORT UB-6
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Slide installation, no need for a mounting hole on top PCB.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

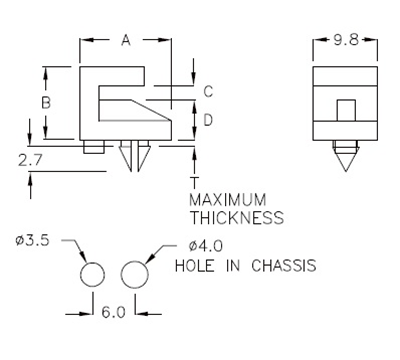

| PART NO | A | B | C | D | T P.C.B THICKNESS |
PACKAGE |
|---|---|---|---|---|---|---|
| UB-6 | 12.6 | 10.8 | 1.7 | 6.0 | 1.0 | 500 |
