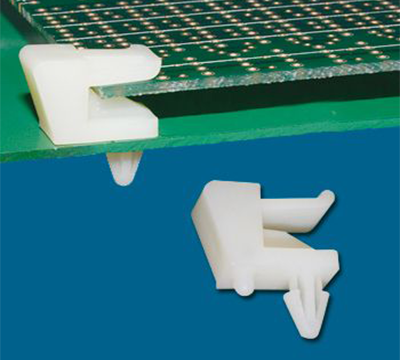

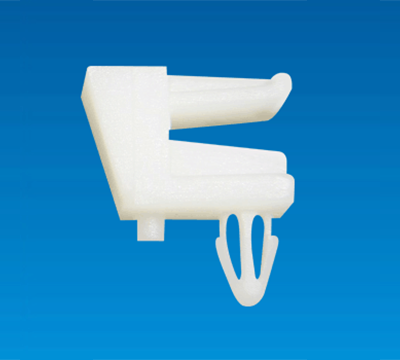

SPACER SUPPORT UB-6BT
- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Slide installation, no need for a mounting hole on top PCB.
SPACER SUPPORT UB-6BT
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Slide installation, no need for a mounting hole on top PCB.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

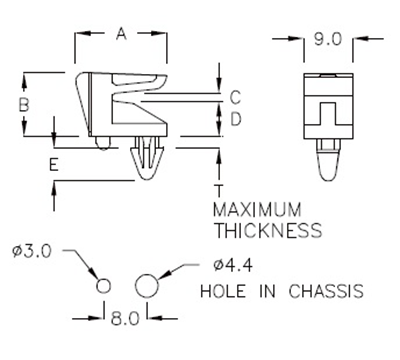

| PART NO | A | B | C | D | E | T P.C.B THICKNESS |
PACKAGE |
|---|---|---|---|---|---|---|---|
| UB-6BT | 17.4 | 11.8 | 1.3 | 6.5 | 6.3 | 1.6 | 500 |
| UB-6CT | 17.5 | 11.8 | 1.6 | 6.35 | 6.0 | 1.6 | 500 |
