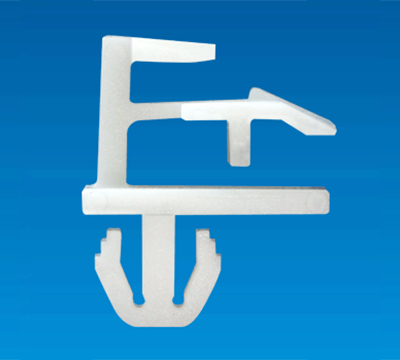

SPACER SUPPORT UBL-05

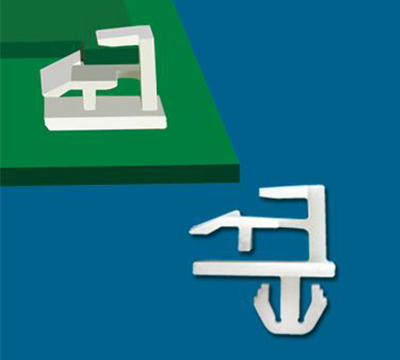

- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Square hole fitting.
- Easily assembly.
SPACER SUPPORT UBL-05
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Square hole fitting.
- Easily assembly.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

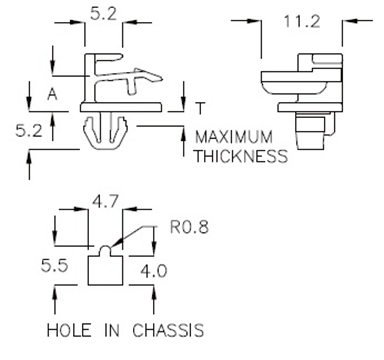

| PART NO | A | T MAXIMUM THICKNESS |
PACKAGE |
|---|---|---|---|
| UBL-05 | 5.0 | 1.6 | 500 |
