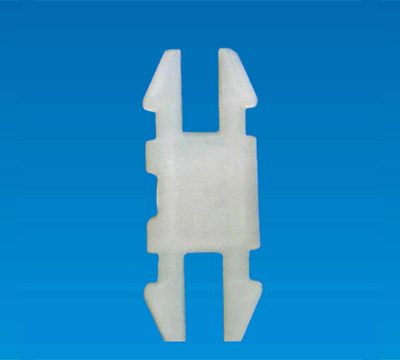

SPACER SUPPORT UCF-03

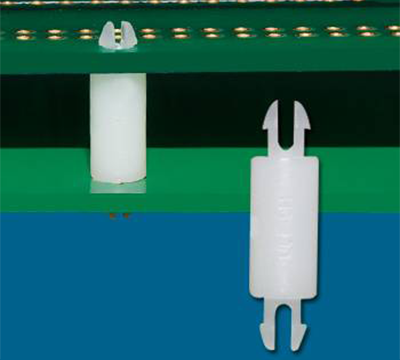

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
SPACER SUPPORT UCF-03
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

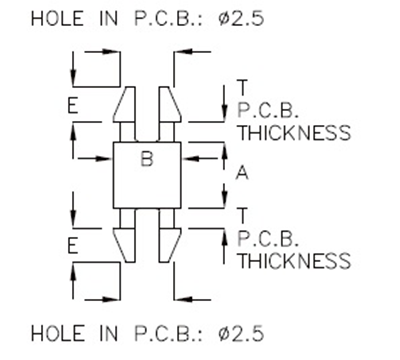

| PART NO | A | B | T P.C.B THICKNESS |
E | PACKAGE |
|---|---|---|---|---|---|
| UCF-03 | 3.0 | Ø3.0 | 0.8 | 1.5 | 2000 |
| UCF-9H | 9.5 | Ø4.5 | 1.6 | 1.8 | 1000 |
