Components & Accessories

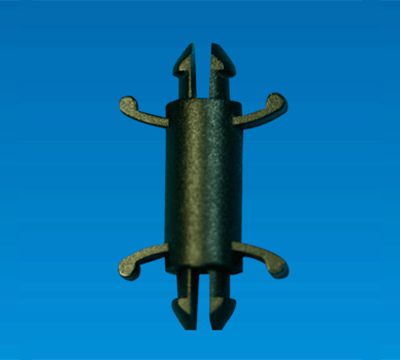

SPACER SUPPORT UCK-10F
- Insert from the chassis underside.

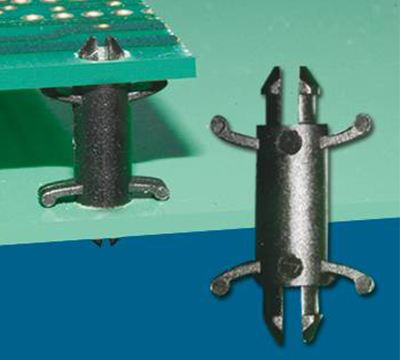

- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT UCK-10F
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL, BLACK

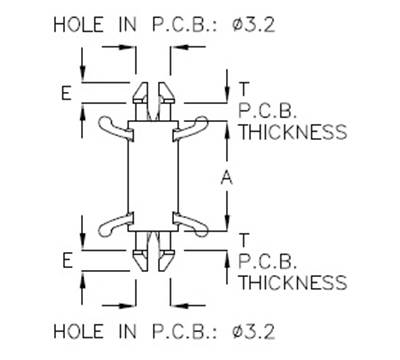

| PART NO | A | T P.C.B THICKNESS |
E | PACKAGE |
|---|---|---|---|---|
| UCK-10F | 10.1 | 1.4~1.6 | 1.9 | 2000 |
