SPACER SUPPORT WITH THREAD SDF-2C
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPACER SUPPORT WITH THREAD SDF-2C
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- TAPPING SCRW M2 * 2.0

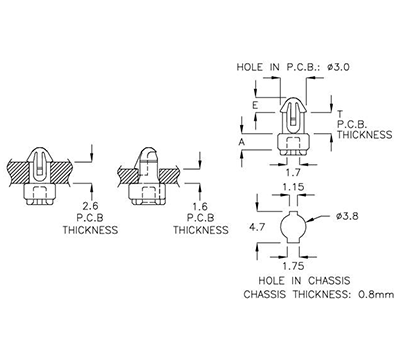

| PART NO | A | T P.C.B THICKNESS |
E | PACKAGE |
|---|---|---|---|---|
| SDF-2C | 2.15 | 1.6 | 2.0 | 2000 |
| 2.6 |
