SPACER SUPPORT WITH THREAD SDS-05

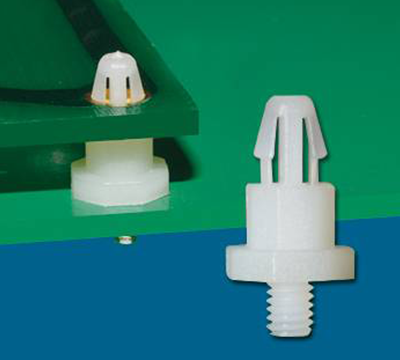

- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Screw Mount design, offer extremely strength to fix circuit board on chassis.

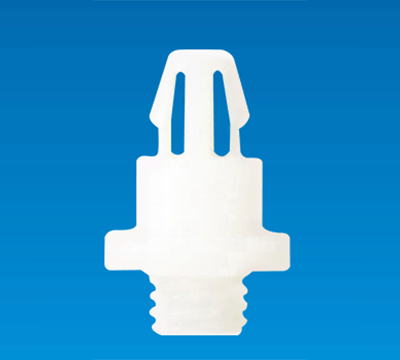

SPACER SUPPORT WITH THREAD SDS-05
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

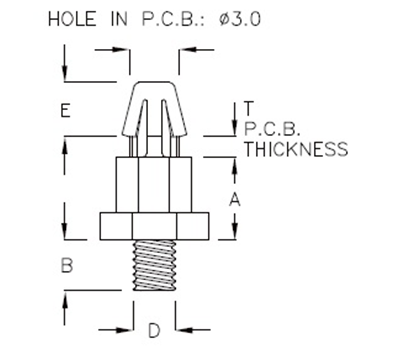

| PART NO | A | B | T P.C.B THICKNESS |
D SCREW |
E | PACKAGE |
|---|---|---|---|---|---|---|
| SDS-05 | 4.9 | 3.0 | 0.8~1.0 | M2.5 | 3.3 | 2000 |
| SDS-05A | 4.9 | 3.0 | 0.8~1.0 | M4 | 3.3 | 2000 |
| SDS-3A | 3.4 | 4.0 | 0.8~1.0 | M4 | 3.3 | 2000 |
