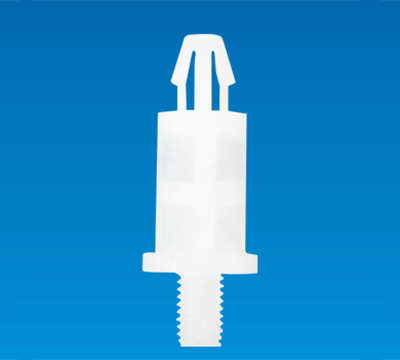

SPACER SUPPORT WITH THREAD SDT-10A

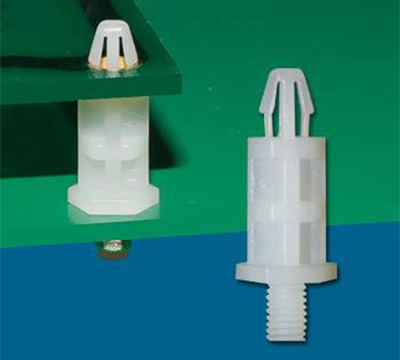

- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPACER SUPPORT WITH THREAD SDT-10A
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

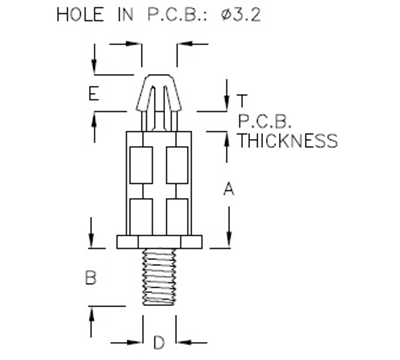

| PART NO | A | B | T P.C.B THICKNESS |
D SCREW |
E | PACKAGE |
|---|---|---|---|---|---|---|
| SDT-10A | 10.4 | 5.0 | 1.4~1.6 | M3 | 3.25 | 2000 |
