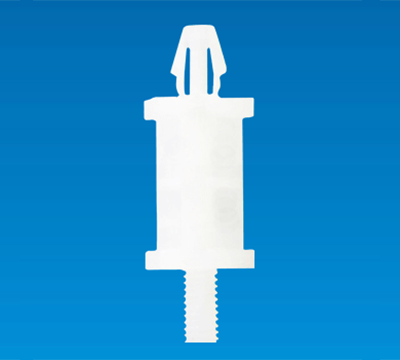

SPACER SUPPORT WITH THREAD SSA-13A

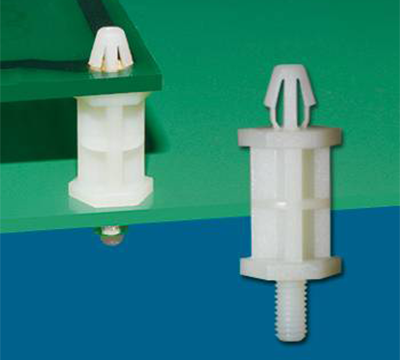

- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPACER SUPPORT WITH THREAD SSA-13A
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

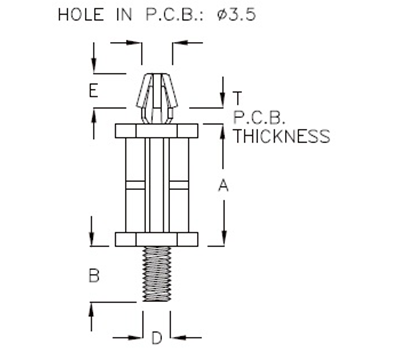

| PART NO | A | B | T P.C.B THICKNESS |
D SCREW |
E | PACKAGE |
|---|---|---|---|---|---|---|
| SSA-13A | 13.0 | 6.0 | 1.4~1.6 | M3 | 3.9 | 500 |
