Sensor
|
Model |

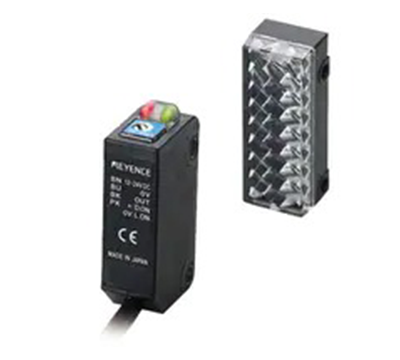

PZ-M63 |
|||
|
Type |
Retro-reflective model (with P.R.O function; M12 connector cable type) |
|||
|
Output |
NPN |
|||
|
Detecting distance |
0.1 to 1.5 m*1 (when reflector R-5 is used)*2 |
|||
|
Setting distance |
― |
|||
|
Light source. |
Red LED |
|||
|
Sensitivity adjustment |
1-turn trimmer (230°) |
|||
|
Response time |
1 ms max. |
|||
|
Operation mode |
LIGHT-ON/DARK-ON (switch-selectable) |
|||
|
Indicator lamp |
Output: orange LED, stable operation: green LED |
|||
|
Control output |
100 mA (40 V) max.Residual voltage: 1 V max. |
|||
|
Digital monitor |
― |
|||
|
Protection circuit |
Reversed polarity, overcurrent protection, surge absorber |
|||
|
Rating |
Power voltage |
12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less |
||
|
Power consumption |
34 mA max. |
|||
|
Environmental resistance |
Enclosure rating |
IP67 |
||
|
Ambient light |
Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max. |
|||
|
Ambient temperature |
-20 to +55 °C -4 to 131 °F (No freezing) |
|||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
|||
|
Shock resistance |
1,000 m/s2, 6 times in each of the X, Y, and Z directions |
|||
|
Case material |
Glass-fiber reinforced plastic |
|||
|
Weight |
Approx. 25 g |
|||
|
*1 1 reflector R-5 is included with the PZ-M61. |
||||
