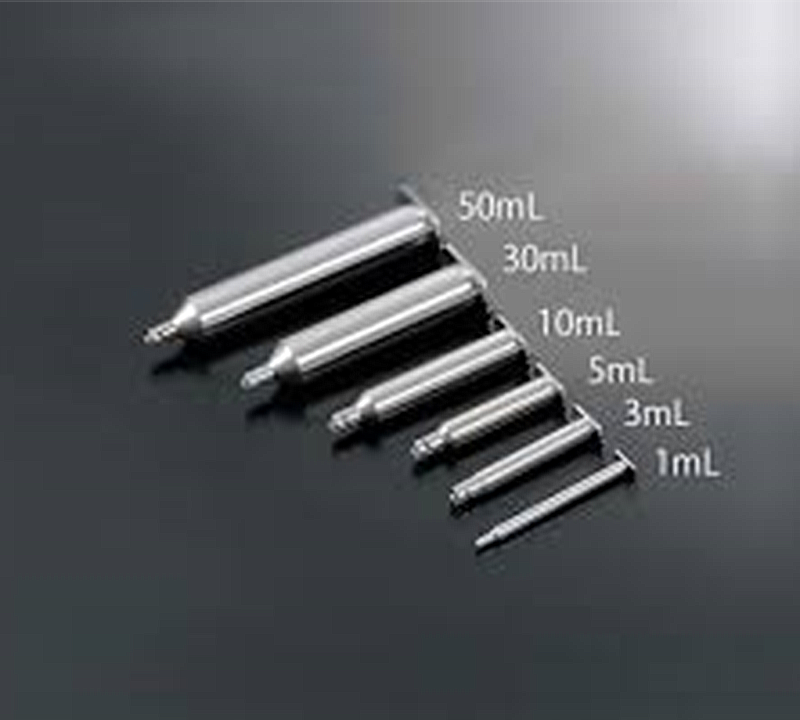

Stainless syringe set Musashi SSY
Best suited for dispensing at high temperatures!
The introduction of the luerlock type allows a nozzle to be mounted in a safe and secure manner.
Capable of coping with high temperatures (200°C).
The introduction of the luerlock type allows a nozzle to be mounted in a safe and secure manner.
Capable of coping with high temperatures (200°C).
- SSY-[]
Syringe material: Stainless steel
Adapter head material: Stainless steel
Tube material: Fluorine resin
O-ring material: Fluororubber
Note:
1. Please contact our Sales Department for options.
2. Working pressure: Max. 0.5 MPa
3. The tube length of the adapter tube can be specified (in steps of 0.5 mm). The following example shows how to specify the length.
e.g, To order a 1.5 m-long stainless adapter tube (with stopper) for a 10 mL syringe, specify it as “AT-10E-SUS-1.5M”.
Adapter head material: Stainless steel
Tube material: Fluorine resin
O-ring material: Fluororubber
| Syringe capacity | Antistatic syringe | Antistatic adapter tube (with stopper) | |||||
| Model | Dimensions (mm) | Minimum Order Quantity (pcs per pack) | Model | Tube length | |||
| Full length | Outside diameter | Flange dimension | |||||
| 1 mL | SSY-1B | 85 | φ6.6 | 18×9 | 1 | - | |
| 3 mL | SSY-3E | 80 | φ11.2 | 24×14 | 1 | AT-3E-SUS-1.0M | 1m |
| 5 mL | SSY-5E | 80 | φ14.7 | 27×16 | 1 | AT-5E-SUS-1.0M | |
| 10 mL | SSY-10E | 105 | φ18.1 | 32×20 | 1 | AT-10E-SUS-1.0M | |
| 30 mL | SSY-30E | 130 | φ25.5 | 45×30 | 1 | AT-50E-SUS-1.0M | |
| 50 mL | SSY-50E | 160 | φ25.5 | 45×30 | 1 | ||
Note:
1. Please contact our Sales Department for options.
2. Working pressure: Max. 0.5 MPa
3. The tube length of the adapter tube can be specified (in steps of 0.5 mm). The following example shows how to specify the length.
e.g, To order a 1.5 m-long stainless adapter tube (with stopper) for a 10 mL syringe, specify it as “AT-10E-SUS-1.5M”.
