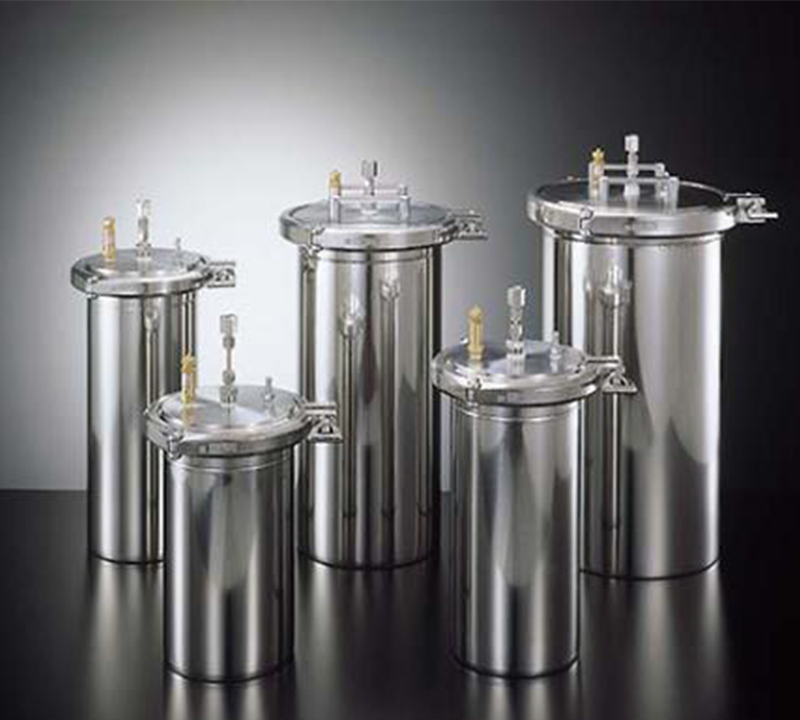

Straight one touch tank Musashi SOT
- SOT-[]-L
- Straight internal tank design from opening with flat bottom allows fluid material containers to be mounted in purchased condition.
- A quick clamp system makes it simple to open and close the lid.
- Can be used as fluid material direct feed type.
- By combining MUSASHI’s various valves and systems, the tank can be used in a wide variety of applications.
- Customizable .

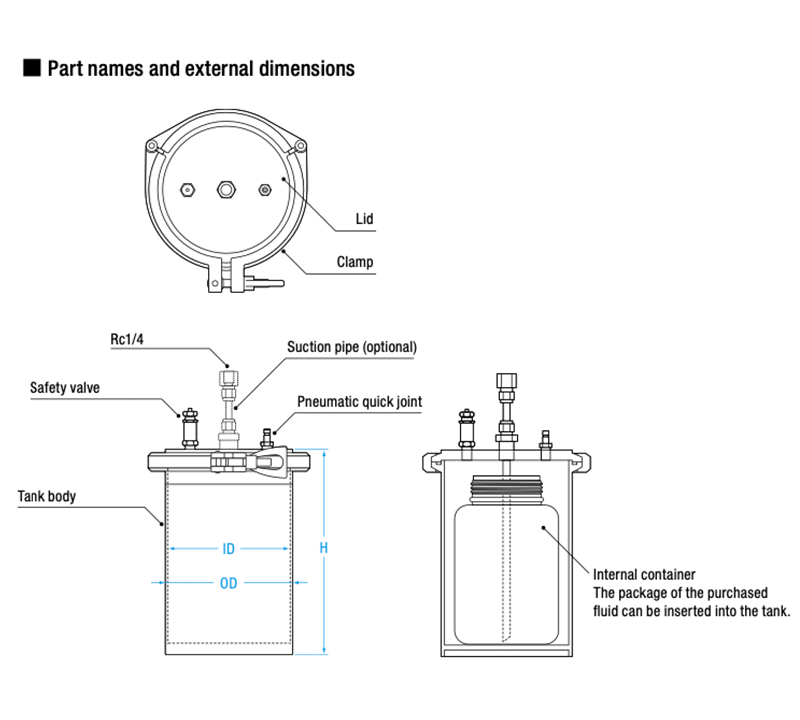

Straight one touch tank
| Capacity (L) | Model | External dimensions (mm) | Weight (kg) | Material | Pressure | Standard accessories | ||
| H | ID | OD | ||||||
| 4.6 | SOT-4.6 L | 266 | φ159 | φ165 | 8.7 | Stainless steel | 0.5 MPa | • Oring (Fluororubber) • Safety valve * • Pneumatic quick joint |
| 5.6 | SOT-5.6 L | 316 | φ159 | φ165 | 9.3 | |||
| 6.3 | SOT-6.3 L | 356 | φ159 | φ165 | 9.7 | |||
| 12.7 | SOT-12.7 L | 417 | φ208 | φ216 | 17.8 | |||
| 21.3 | SOT-21.3 L | 448 | φ259 | φ267 | 25.8 | |||
