Dispensing

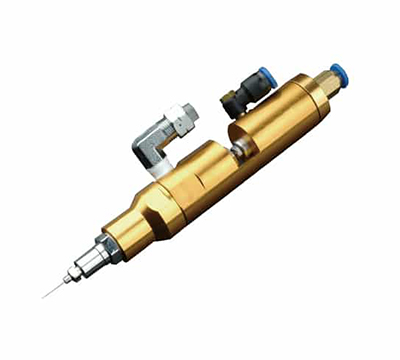

Suck-Back Valve 303SC
Features
- Precision dispense, vacuum function.
- Most suitable for the process requiring the vacuum efficiency to prevent the remaining pressure after dispensing.
Specification
| Model | 303sc |
|---|---|
| Maximum Dose | 0.8 ℓ /min |
| Viscosity Range | 1 ~ 200,000 cps |
| Operating Air Pressure | 5 kgf / ㎠ |
| Maximum Fluid Charge Pressure | 30 kgf / ㎠ |
| Maximum Number of Cycles | 150 times / min |
| Air Operating Port | PT1/8” |
| Material of Dosing Part | AL 6061 |
| Material of Driving Part | AL 6061 |
| Weight | 240 g |
