Screwing

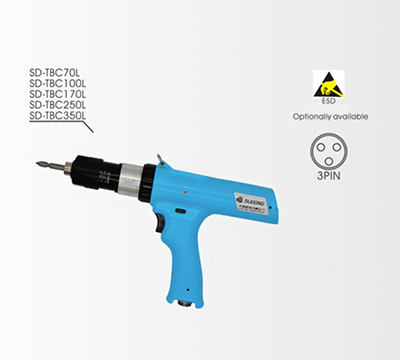

Gun Type Series Electric Screwdriver
- Automatic electric screwdriver
- Brushless motor, more stable torque output
- Suitable for use in a dust-free working environment, with high stability and simple operation
- Using non-contact switch, no need to replace consumables, long service life
Gun Type Series Electric Screwdriver
Features
Technical parameter
Features
- Fully automatic electric screwdriver, when the screw is locked to the set torque, the clutch will automatically trip, the motor will automatically power off and brake in time to stop the electric screwdriver
- Brushless motor, torque output is more stable, suitable for use in dust-free working environment, high stability, simple operation, screwdriver can be used for a long time
- Using non-contact switch, no need to replace consumables, long service life
Technical parameter
| Model | Measuring Range | No load speed(r.pm) | Input voltage | Weight(g) | Diameter of screw | Screw bit | |
|---|---|---|---|---|---|---|---|
| Kgf.cm | N.m | ||||||
| SD-TBC25L/SD-TA25L | 5-25 | 0.5-2.45 | 1000 | 30V | 750 | M2.6-M4.0 | 1/4hex |
| SD-TBC25LF/SD-TA25LF | 5-23 | 0.5-2.25 | 2000 | M2.6-M4.5 | |||
| SD-TBC30L/SD-TA30L | 10-30 | 0.98-2.94 | 1000 | M3.0-M5.0 | |||
| SD-TBC30LF/SD-TA30LF | 10-30 | 0.98-2.94 | 2000 | M2.6-M4.5 | |||
| SD-TBC35L/SD-TA35L | 10-35 | 0.98-3.43 | 650 | M3.0-M5.0 | |||
| SD-TBC45L/SD-TA45L | 15-45 | 1.47-4.41 | M3.5-M5.5 | ||||
| SD-TBC50L/SD-TA50L | 20-50 | 1.96-4.9 | 1000 | M4.0-M6.0 | |||
| SD-TBC70L/SD-TA70L | 30-70 | 2.94-6.86 | 800 | 1300 | M5.0-M6.5 | ||
| SD-TBC 100L/SD-TA100L | 40-100 | 3.92-9.8 | 500 | M6.0-M8.0 | |||
| SD-TBC 170L/SD-TA1 70L | 60-170 | 5.88-16.7 | 350 | M8.0-M10 | |||
| SD-TBC250L/SD-TA250L | 80-250 | 7.84-24.5 | 215 | M10-M12 | |||
| SD-TBC350L/SD-TA350L | 120-350 | 11.8-34.3 | 155 | M12-M14 | |||
