Intelligent Automatic Machine Type Electric Screwdriver
- Multiple control modes are suitable for various automatic tightening equipment
- No need to modify or add accessories, connect to the controller and use directly
- Use protocol communication to connect with equipment, effectively shielding interference signals
Intelligent Automatic Machine Type Electric Screwdriver
Features
Technical parameter
Optional specification of screwdriver bits
Features
- Multiple control modes are suitable for various automatic tightening equipment.
- No need to modify or add accessories, connect to the controller and use it directly.
- Use protocol communication to connect with equipment, effectively shielding interference signals.
- The newly designed integrated power signal controller uses terminal wiring to ensure uninterrupted connection.
Technical parameter
| Model | Measuring Range | No load speed(r.pm) | Input voltage | Weight(g) | Diameter of screw | Screw bit | |
|---|---|---|---|---|---|---|---|
| Kgf.cm | N.m | ||||||
| SD-CA200AT | 0.1-1.5 | 0.01-0.15 | 1000 | 30V | 330 | M1.0-M1.7 | Ø 4mm |

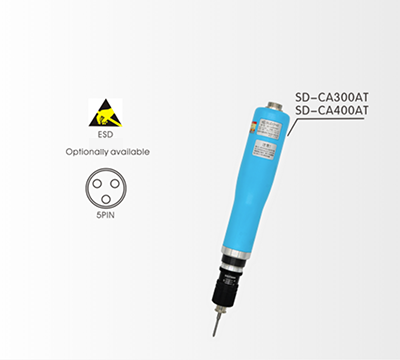

| SD-CA300AT | 0.2-3.5 | 0.02-0.34 | M1.2-M2.5 | ||||
| SD-CA400AT | 0.3-6.5 | 0.03-0.63 | M1.4-M2.6 | ||||

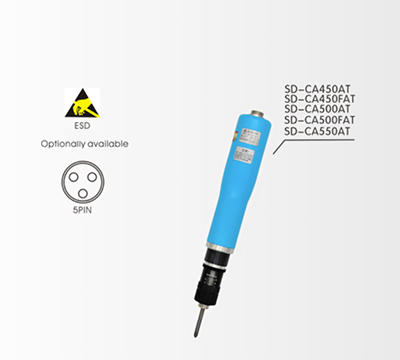

| SD-CA450AT | 1-10 | 0.1-1 | 430 | M1.4-M3.0 | Ø 5mm | ||
| SD-CA450FAT | 2000 | ||||||
| SD-CA500AT | 2-12 | 0.2-1.18 | 1000 | M1.6-M3.0 | |||
| SD-CA500FAT | 2000 | ||||||
| SD-CA550AT | 3-19 | 0.29-1.86 | 1000 | M2.3-M3.5 | |||

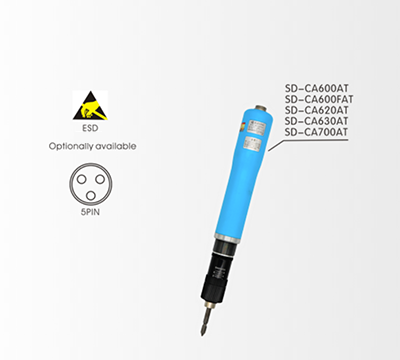

| SD-CA600AT | 5-25 | 0.5-2.45 | 640 | M2.6-M4.0 | 1/4hex | ||
| SD-CA600FAT | 5-23 | 0.5-2.25 | 2000 | ||||
| SD-CA620AT | 10-30 | 0.98-2.94 | 1000 | M2.6-M4.5 | |||
| SD-CA630AT | 10-35 | 0.98-3.43 | 650 | ||||
| SD-CA700AT | 15-45 | 1.47-4.41 | M3.0-M5.0 | ||||
| SD-CA620FAT | 10-30 | 0.98-2.94 | 2000 | M3.5-M5.5 | |||
| SD-CA730AT | 20-50 | 1.96-4.9 | 1000 | M4.0-M6.0 | |||
Optional specification of screwdriver bits
