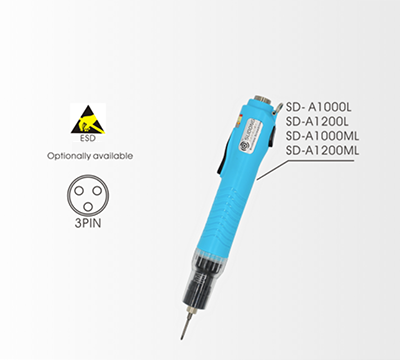

Mini Variable Speed Hand Push Electric Screwdriver
- Five-stage speed can be set freely, torque is constant, suitable for precision tightening operations in different ranges
- Using high-performance low-voltage brushless motor, no dust
- Low noise, durability, no maintenance required, meeting environmental protection requirements
- Ergonomic size, temperature resistance, low vibration, good grip
Mini Variable Speed Hand Push Electric Screwdriver
Features
Technical parameter
Features
- The five-stage speed can be set freely and the torque is constant, suitable for precision tightening operations in different ranges.
- Adopt high-performance low-voltage brushless motor, no dust, low noise, durability, no maintenance, and meet environmental protection requirements.
- It conforms to ergonomic size, temperature resistance, small vibration, good grip, novel appearance, light weight, simple and convenient operation, long-term use of hand-held screwdriver without fatigue, and improves work efficiency.
- The torque is as low as 0.1kgf.cm-1.0kgf.cm and 0.15kgf.cm-2.0kgf.cm, suitable for high-precision industries, such as mobile phones, watches, optical drives, and IT digital products.
Technical parameter
| Model | Measuring Range | No load speed(r.pm) | Input voltage | Weight(g) | Diameter of screw | Screw bit | |
|---|---|---|---|---|---|---|---|
| Kgf.cm | N.m | ||||||
| SD-A1000L | 0.1-1.0 | 0.01-0.1 | 600-1000 | 30V | 182 | M1.0-M1.5 | Ø 4mm |
| SD-A1200L | 0.2-2.0 | 0.019-0.2 | M1.0-M2.0 | ||||
| SD-A1000MI | 0.1-1.0 | 0.01-0.1 | 150-350 | M1.0-M1.5 | |||
| SD-A1200ML | 0.2-2.0 | 0.019-0.2 | M1.0-M2.0 | ||||
