Screwing
Value Type Electric Screwdriver
- Automatic electric screwdriver
- Brushless motor, more stable torque output
- Suitable for use in a dust-free working environment, with high stability and simple operation
- Using non-contact switch, no need to replace consumables, long service life
Value Type Electric Screwdriver
Features
Optional specification of screwdriver bits
Features
- Fully automatic electric screwdriver, when the screw is locked to the set torque, the clutch will automatically trip, the motor will automatically power off and brake in time to stop the electric screwdriver.
- No carbon brush motor, the torque output is more stable, suitable for use in a dust-free working environment, high stability, simple operation, the screwdriver can be used for a long time.
- Using non-contact switch, no need to replace consumables, long service life.
| Model | Measuring Range | No load speed(r.pm) | Input voltage | Weight(g) | Diameter of screw | Screw bit | |
|---|---|---|---|---|---|---|---|
| Kgf.cm | N.m | ||||||

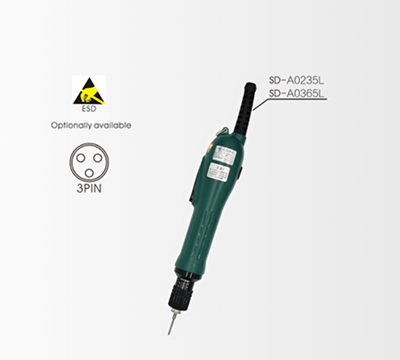

| SD-A0235L | 0.2-3.5 | 0.02-0.34 | 500-1000 | 30V | 330 | M1.2-M2.5 | Ø 4mm |
| SD-A0365L | 0.3-6.5 | 0.03-0.63 | M1.4-M2.6 | ||||
| SD-A1010L | 1-10 | 0.1-1 | 500 | M1.4-M3.0 | Ø 5mm | ||
| SD-A2015L | 2-15 | 0.19-1.47 | M1.6-M3.0 | ||||
| SD-A3019L | 3-19 | 0.29-1.86 | 740 | M2.3-M3.5 | 1/4hex | ||

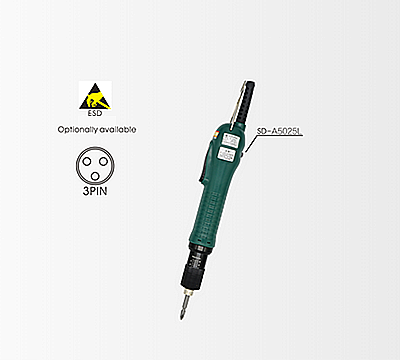

| SD-A5025L | 5-25 | 0.5-2.45 | 1000 | M4.0-M6.0 | |||
Optional specification of screwdriver bits
